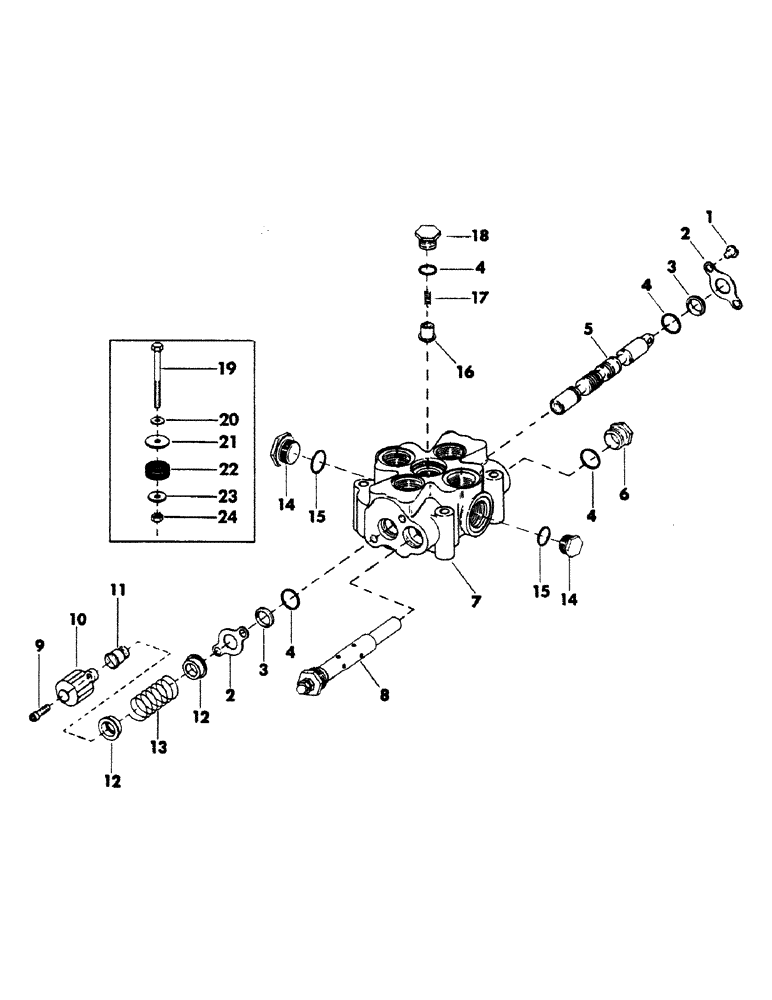

Запчасти Case 40BLC (256) - 1-SPOOL MAIN CONTROL VALVE, (USED WITH LEVELER CIRCUIT) (07) - HYDRAULIC SYSTEM

S509837

VALVE, 1-spool main control - complete (Consists of items 1 thru 18) - (Supersedes S506848)

1шт.

1

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

2шт.

2

S13829

PLATE

seal

2шт.

3

S62092

WIPER

2шт.

4

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

4шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

6

S13707

PLUG

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

8

CARTRIDGE, main relief - set at 2050 PSI - (For breakdown, see page 196)

1шт.

9

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW - 3/8" NC x 1" gr 8 - (Hexagon socket head)

2шт.

10

S62278

CAP

plunger

1шт.

11

S62292

BOLT

CPSW - (Special)

1шт.

12

S62288

SEAT

spring

2шт.

13

S104822

SPRING

- (Supersedes S62269)

1шт.

Change in listing

1шт.

14

S62190

PLUG

- (Includes "O" ring)

2шт.

15

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

16

S13716

VALVE POPPET

POPPET

1шт.

17

S13715

SPRING

1шт.

18

S13714

PLUG

1шт.

19

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

Mounts valve to turntable Hex, 1/2"-13 x 4 3/4", G5

4шт.

20

195-105

WASHER,7/16"

flat - 1/2"

4шт.

21

195-2260

WASHER,5/8" x 2" x .095"

flat - 1/2"

4шт.

22

S49527

MOUNTING PARTS

MOUNT, lord

4шт.

23

95-8

WASHER,1/2"

flat (9/16") 1/2"

4шт.

24

131-70

NUT,1/2"-13, GB

NUT, self locking - 9/16"

4шт.
