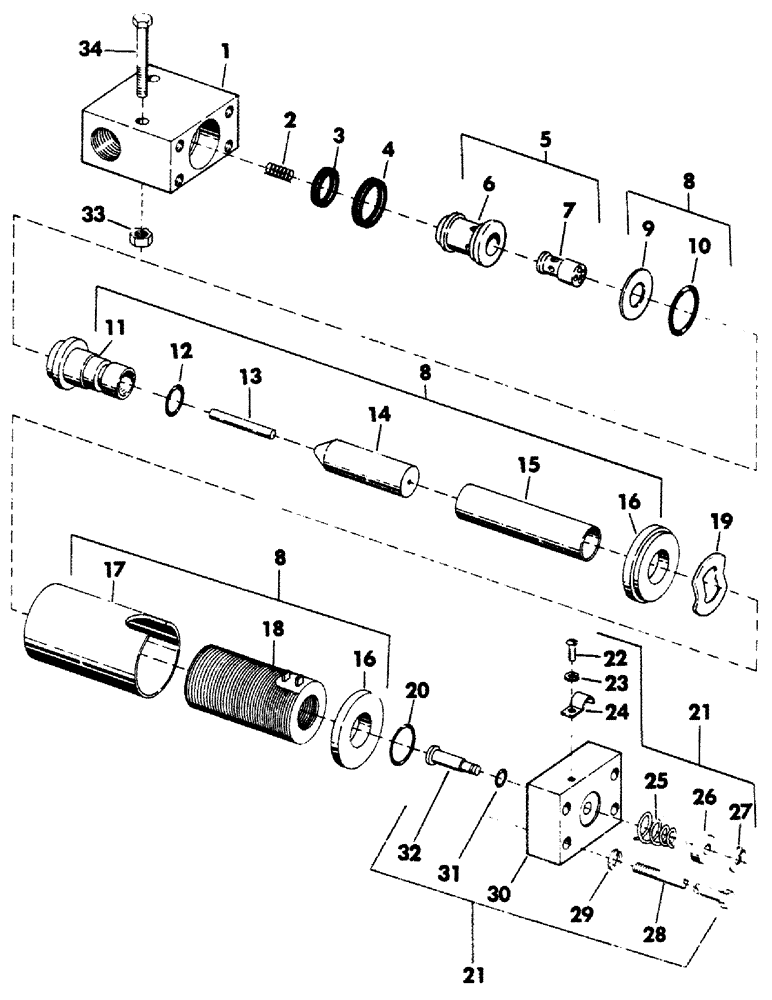

Запчасти Case 40BLC (254) - HI-LOW RANGE SOLENOID VALVE (07) - HYDRAULIC SYSTEM

S231247

VALVE

hi-low range - (Consists of items 1 thru 32)

1шт.

1

S109094

BLOCK

1шт.

2

S109095

SPRING

SRPING

1шт.

3

S109096

MISC PACKAGING

PACKING

1шт.

4

S109097

MISC PACKAGING

PACKING

1шт.

5

S232006

SPOOL

AND SLEEVE ASSEMBLY - (Consists of items 6 and 7)

1шт.

6

S109102

SLEEVE

1шт.

7

S109101

SPOOL

1шт.

8

S232005

TUBE

ASSEMBLY - (Consists of items 9 thru 18)

1шт.

9

S71937

WASHER

1шт.

10

S64952

SEALING RING

PACKING

1шт.

11

S62763

STOP

1шт.

12

S109099

PACKING

1шт.

13

S71938

ROD

1шт.

14

S62766

PLUNGER

1шт.

15

S62767

TUBE

1шт.

16

S62761

WASHER

2шт.

17

S62765

SHELL

1шт.

18

S62764

SPINDLE

COIL

1шт.

19

S109106

WASHER

spring

1шт.

20

S64929

PACKING

1шт.

21

S232004

MANUAL RELEASE ASSEMBLY - (Consists of items 22 thru 32)

1шт.

22

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

machine

1шт.

23

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

24

S109103

CLAMP, cable

1шт.

25

S62771

SPRING

1шт.

26

S62772

BUTTON

1шт.

27

S109098

RING, SNAP

RING, retaining

1шт.

28

S90649

CAPSCREW

CPSW

4шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

S71981

PLATE

1шт.

31

S64668

PACKING

1шт.

32

S62774

PIN

1шт.

33

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

34

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

CPSW - 1/4" NC x 2" gr 5 - (Mounts valve to valve mounting bracket)

2шт.
