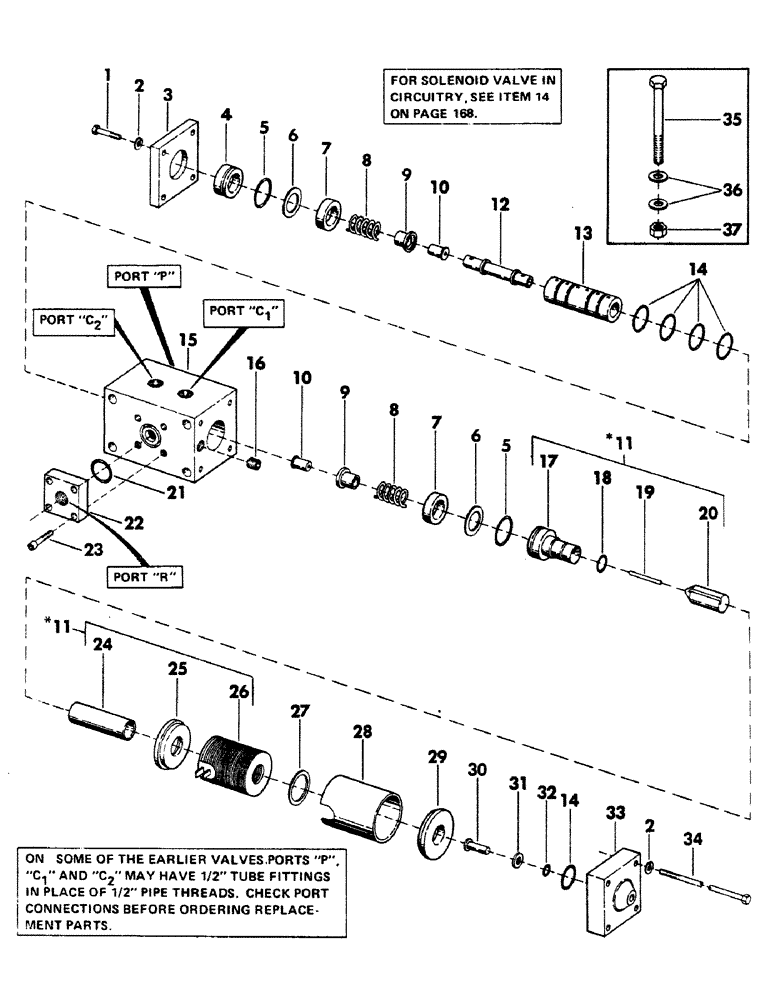

Запчасти Case 40BLC (252) - SOLENOID VALVE, (USED IN FELLER BUNCHER COLLECTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

S508615

VALVE, solenoid - complete (Consists of items 1 thru 34)

1шт.

1

S65253

CPSW - 5/16" NC x 1"

4шт.

2

S64608

X

WASHER, lock

8шт.

3

S64604

PLATE

1шт.

4

S64716

STOP

1шт.

5

S64611

"O" RING

2шт.

6

S95751

WASHER

spring

2шт.

7

S95750

SPACER

2шт.

8

S64670

SPRING

2шт.

9

S95745

SUPPORT

REST, spring

2шт.

10

S95743

CAP

2шт.

11

S106709

TUBE

ASSEMBLY - (Consists of items 17 thru 20 and 24 thru 26)

1шт.

12

S64989

SPOOL

1шт.

13

S64991

SLEEVE

1шт.

14

S65039

O-RING

"O" RING

5шт.

15

S64610

BLOCK, used on earlier valves with 1/2" tube fittings in ports C1, C2, and P and 1/2" NPT fitting on port R - (See note)

1шт.

S106701

BLOCK, used on valves with 1/2" NPT fittings in all ports - (See note)

1шт.

16

S65076

PLUG

pipe - level seal - 1/4" NPT

1шт.

17

NSS

NOT SOLD SEPARAT

STOP

1шт.

18

NSS

NOT SOLD SEPARAT

"O" RING

1шт.

19

NSS

NOT SOLD SEPARAT

PIN, roll

1шт.

20

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

21

S64714

"O" RING

1шт.

22

S106708

BLOCK, port - (Supersedes S64715)

1шт.

23

S64713

CPSW

4шт.

24

NSS

NOT SOLD SEPARAT

TUBE

1шт.

25

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

26

NSS

NOT SOLD SEPARAT

COIL

1шт.

27

S64609

WASHER

spring

1шт.

28

S64550

HOUSING

SHELL

1шт.

29

S64551

CAP

WASHER

1шт.

30

S64603

PIN

1шт.

31

S64613

BUSHING

1шт.

32

S64668

PACKING

"O" RING

1шт.

33

S64552

COVER

PLATE

1шт.

34

S64607

CPSW - 5/16" NC x 5"

4шт.

35

113-2237

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

Mounts solenoid valve Hex, 3/8"-16 x 4 3/4", G5

2шт.

36

195-525

WASHER,3/8", SAE

flat - 13/32"

4шт.

37

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.
