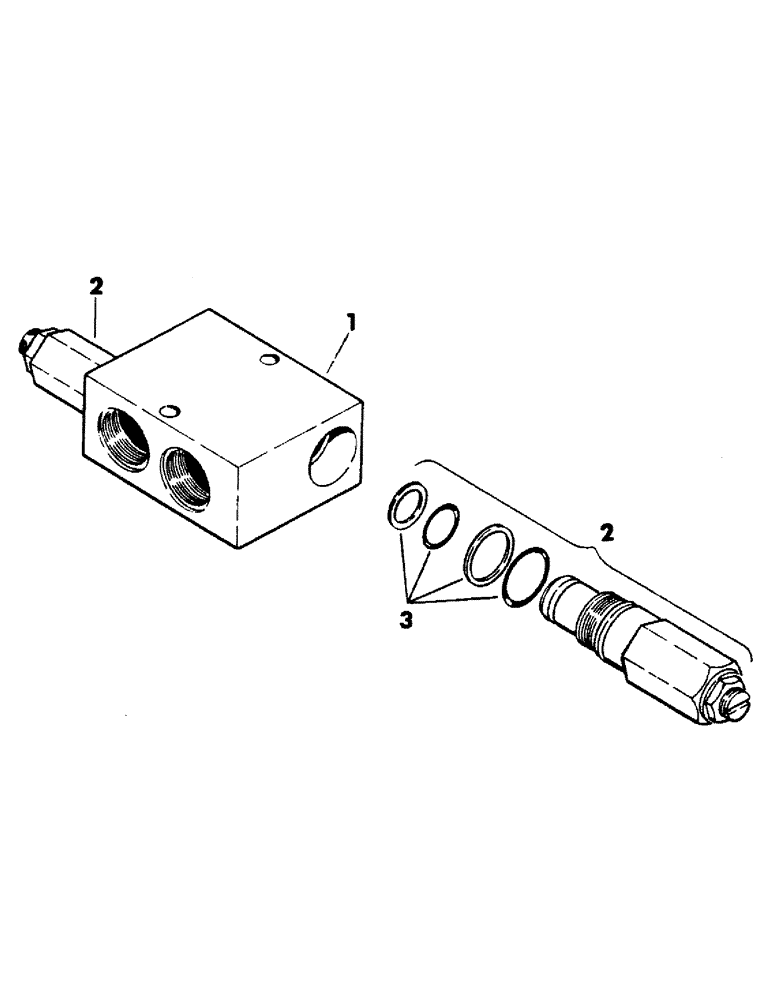

Запчасти Case 40BLC (250) - RELIEF VALVE, (USED WITH FELLER BUNCHER CIRCUIT) (07) - HYDRAULIC SYSTEM

S513221

VALVE, cross-over - consists of items 1 thru 3 - (Used on units with serial number 6275249 and after)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

S115826

CARTRIDGE

2шт.

3

S113576

KIT

packing

1шт.

4

S208874

VALVE, relief - (Used on units with serial number 450 thru 6275248) - (Not illustrated)

1шт.

5

S82171

KIT, relief valve repair - (Includes 2 teflon back-up rings, 1 "O" ring, 1 lapped assembly, 1 "O" ring, 1 leather back-up ring, 1 outer spring, 1 inner spring, 1 adjusting screw, 1 gasket and 1 cap)

1шт.
