(249) - SWING, IN-LINE, CROSSOVER RELIEF VALVE, (USED WITH SWING MOTOR CIRCUIT)

Запчасти Case 40BLC (249) - SWING, IN-LINE, CROSSOVER RELIEF VALVE, (USED WITH SWING MOTOR CIRCUIT) (07) - HYDRAULIC SYSTEM

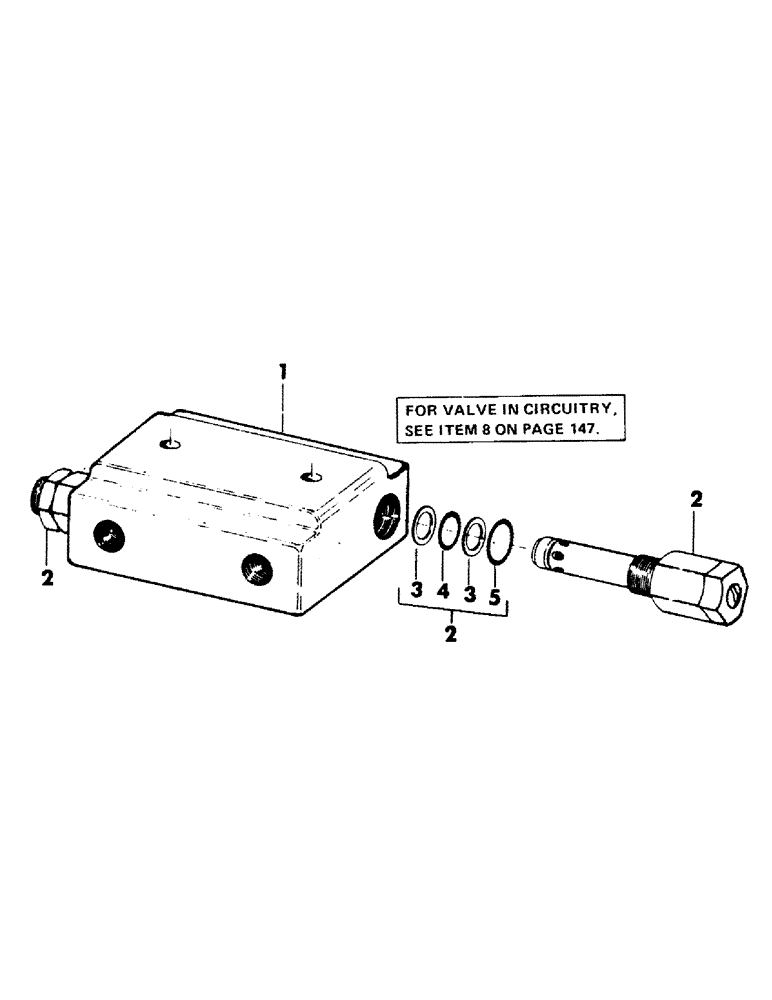

Схема запчастей Case 40BLC - (249) - SWING, IN-LINE, CROSSOVER RELIEF VALVE, (USED WITH SWING MOTOR CIRCUIT) (07) - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S37296

VALVE

crossover inline relief - complete (Consists of item 1 and 2)

1шт.

1

S73967

HOUSING

valve

1шт.

2

S73968

CARTRIDGE

relief - complete (Consists of items 3 thru 5)

2шт.

3

D24036

WASHER

RING, back-up

2шт.

4

S6483

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - .924" ID x 1.125" OD

1шт.

5

S6579

O-RING

"O" RING - 1.046" ID x 1.312" OD

1шт.
