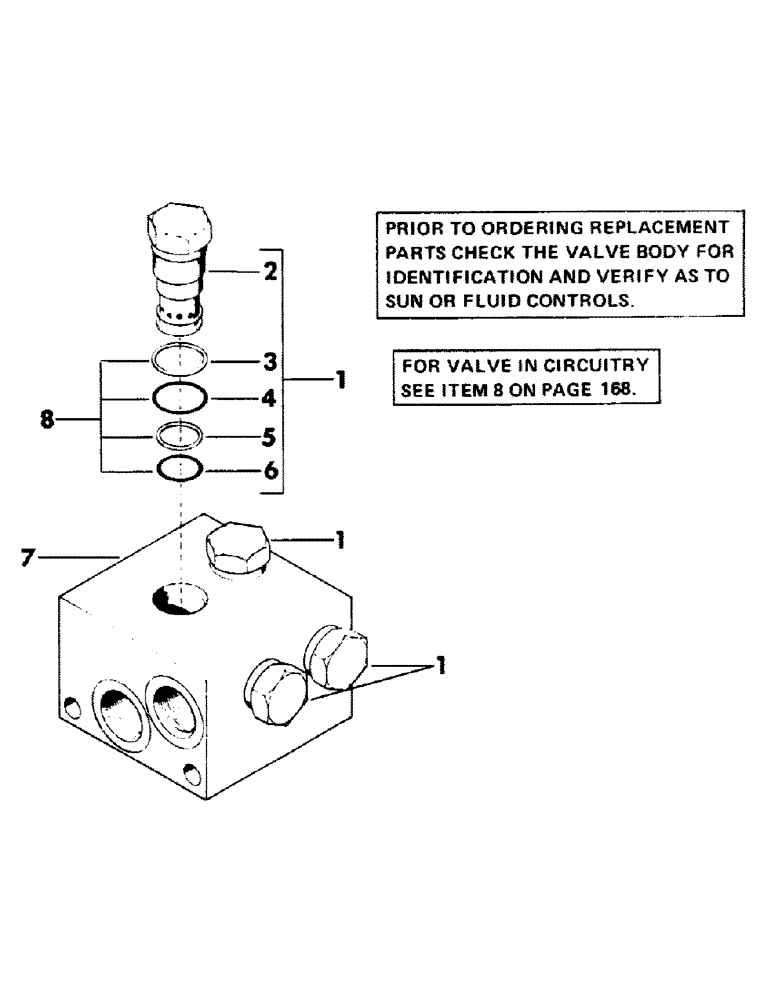

Запчасти Case 40BLC (247) - MULTIPLE CHECK VALVE (07) - HYDRAULIC SYSTEM

S607153

VALVE

multiple check - complete (Consists of items 1 thru 8 on sun type valve and item 9 on fluid control valve type)

1шт.

1

S107625

CARTRIDGE

ASSEMBLY - (Includes item 2 thru 6)

4шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - (Order S107625)

4шт.

3

NSS

NOT SOLD SEPARAT

WASHER, back-up - (Order seal kit)

4шт.

4

NSS

NOT SOLD SEPARAT

"O" RING - (Order seal kit)

4шт.

5

NSS

NOT SOLD SEPARAT

WASHER, back-up - (Order seal kit)

4шт.

6

NSS

NOT SOLD SEPARAT

"O" RING - (Order seal kit)

4шт.

7

S109024

BODY

1шт.

8

S109023

SEAL KIT

KIT, seal - (Consists of items 3 thru 6)

1шт.

9

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD - (Located under plugs) - (Not illustrated)

4шт.
