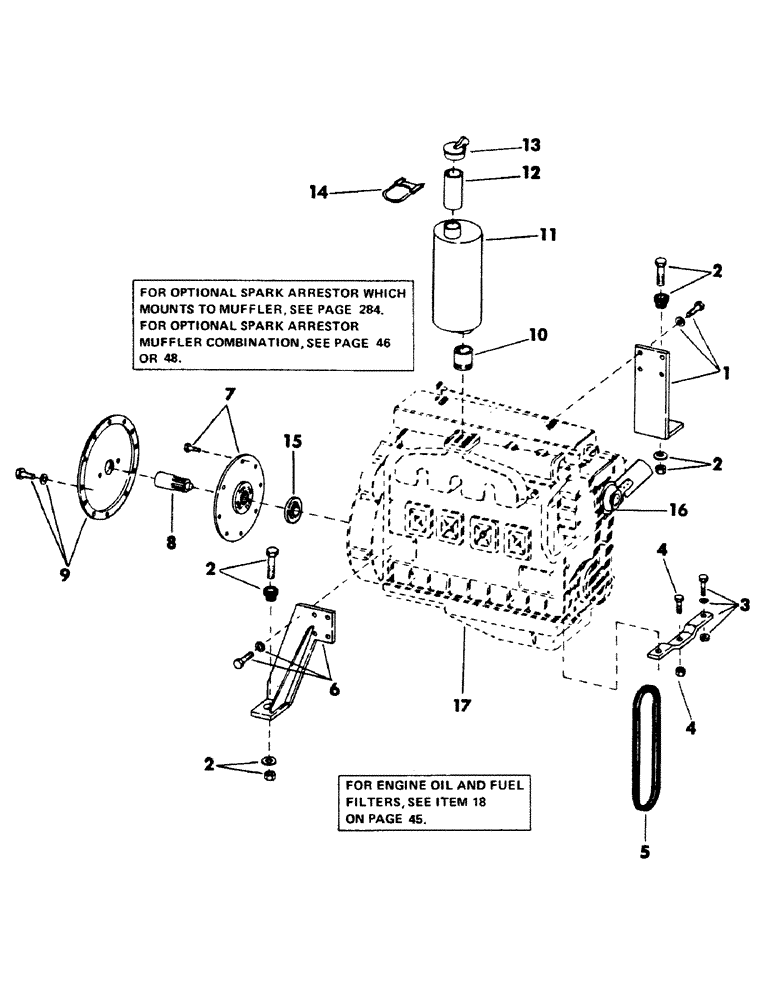

Запчасти Case 40BLC (044) - DETROIT DIESEL 4-71 ENGINE AND ATTACHING PARTS (01) - ENGINE

1

S506055

BRACKET

rear engine mounting - (Left hand)

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

CPSW - 3/4" NC x 4-1/4" gr 5

2шт.

S93392

MOUNTING PARTS

MOUNT, rubber

2шт.

195-2270

WASHER,13/16" x 3" x .238", HDN

snubbing

2шт.

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

2шт.

3

S219892

SUPPORT, front engine

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

95-9

WASHER

flat - 5/8"

2шт.

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

4

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

5

S82985

V-BELT,36.70" L

BELT , Alternator 36.70" L

1шт.

6

S506059

BRACKET

rear engine mounting - (Right hand)

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

S502452

DAMPER

DAMPENER, pump drive

1шт.

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

CPSW - 3/8" NC x 5/8" gr 5

8шт.

8

S63201

COUPLING

1шт.

9

S52615

MOUNTING PARTS

MOUNTING, hydraulic pump

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

10

S219923

ADAPTER, exhaust - (Used on units with serial number 450 thru 707)

1шт.

S224783

ADAPTER, exhaust - (Used on units with serial number 708 thru 759)

1шт.

S225948

ADAPTER, exhaust - (Used on units with serial number 760 and after)

1шт.

11

S505881

MUFFLER

- (Used on units with serial number 450 thru 759)

1шт.

S508420

MUFFLER

- (Used on units with serial number 760 and after)

1шт.

12

S93396

TUBE,4" OD x 18" L

PIPE, exhaust - (Used on units with serial number 450 thru 759)

1шт.

S98927

PIPE CLAMP

PIPE, exhaust - (Used on units with serial number 760 and after)

1шт.

13

S93398

CAP

exhaust pipe - (Used on units with serial number 450 thru 759)

1шт.

A19795

CAP

exhaust pipe - (Used on units with serial number 760 and after)

1шт.

14

S92543

CLAMP, pipe - (Used on units with serial number 450 thru 759)

2шт.

L12412

CLAMP, pipe - (Used on units with serial number 760 and after)

2шт.

15

S82793

BUSHING

SPACER, pump drive

1шт.

16

S97486

FAN

SPACER, fan

1шт.

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

17

S57273

ENGINE, Detroit diesel 4-71 - (Used on units with serial number 450 thru 707)

1шт.

S604763

ENGINE, Detroit diesel 4-71 - (Used on units with serial number 708 and after)

1шт.

18

A19578

ELEMENT

fuel filter - (Not illustrated)

1шт.

A19579

ELEMENT

fuel strainer - (Not illustrated)

1шт.

S105608

ELEMENT

oil filter - (Not illustrated)

1шт.
