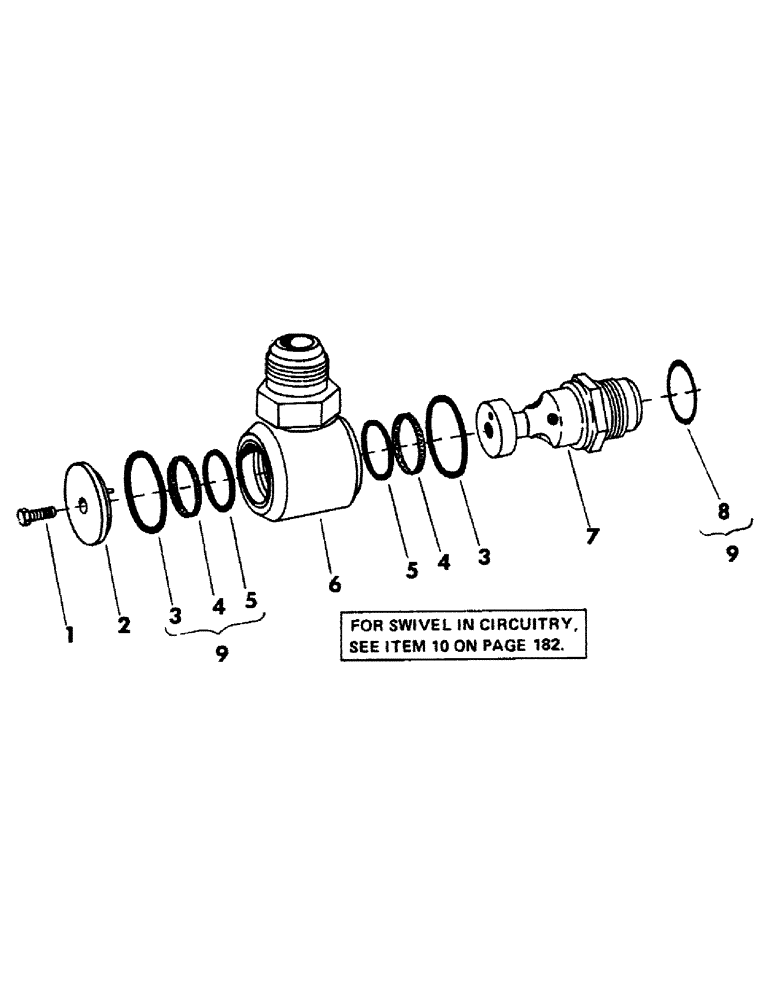

Запчасти Case 40BLC (244) - HYDRAULIC LINE SWIVEL, (USED WITH HEAVY LIFT ATTACHMENT IN HOIST CIRCUIT) (07) - HYDRAULIC SYSTEM

S209354

PIVOT

SWIVEL, hydraulic line - complete (Consists of items 1 thru 8)

1шт.

1

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

2

S7992

GUARD

CAP, grit

1шт.

3

S5815

O-RING,1.49" ID x 1.75" OD x 0.143"

"O" RING - 1.484" ID x 1.750" OD

2шт.

4

S81854

RING, SNAP

RING, back up

2шт.

5

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING - 1.296" ID x 1.562" OD

2шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

NSS

NOT SOLD SEPARAT

STEM, swivel

1шт.

8

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

1шт.

9

S82242

SEAL KIT

KIT, seal - (Consists of items 3, 4, 5 and 8)

1шт.
