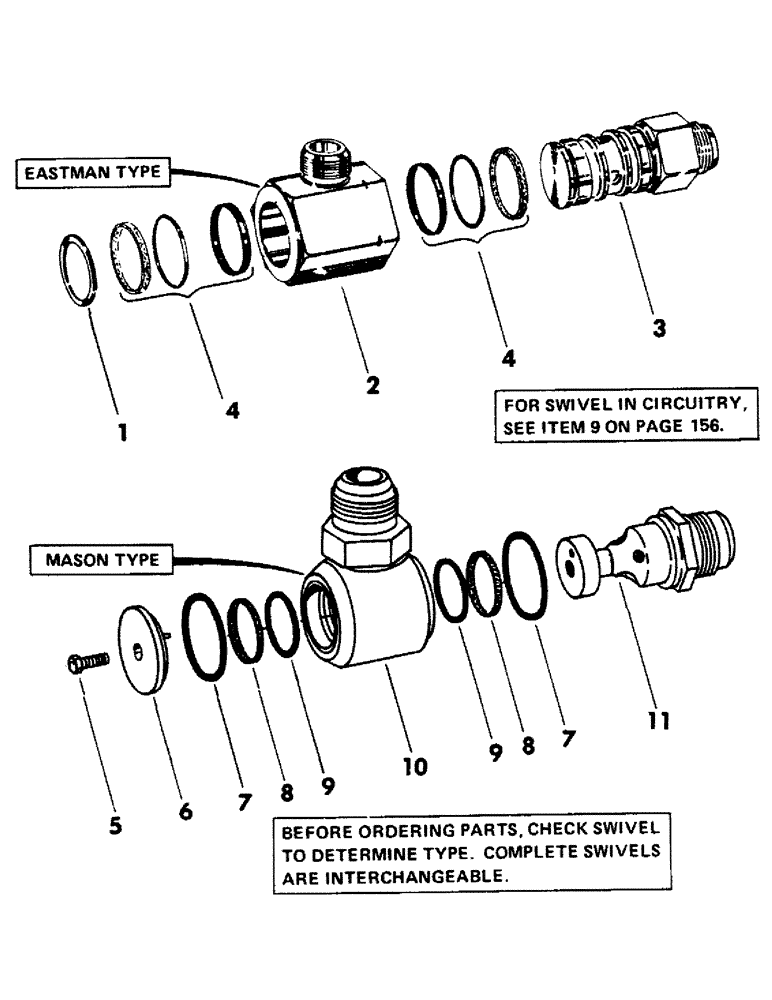

Запчасти Case 40BLC (242) - HYDRAULIC LINE SWIVEL, (USED WITH 16" FELLER BUNCHER HYDRAULIC CIRCUIT) (07) - HYDRAULIC SYSTEM

S205533

SWIVEL, hydraulic line - complete, consists of: ref. nos. 1 thru 3 on Eastman type and ref. nos. 5 thru 11 on Mason type

2шт.

1

L32161

SNAP RING,#131, Ext

Ring, Snap, #131, Ext

1шт.

For Eastman Type only

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - (Order complete swivel)

1шт.

For Eastman Type only

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - (Order complete swivel)

1шт.

For Eastman Type only

1шт.

4

S79932

KIT

seal - (Consists of 2 quad rings, 2 leather dust seals and 2 teflon back up washers)

1шт.

For Eastman Type only

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

For Mason Type only

1шт.

6

S7992

GUARD

grit

1шт.

For Mason Type only

1шт.

7

S5815

O-RING,1.49" ID x 1.75" OD x 0.143"

"O" RING - 1.484" ID x 1.750" OD

2шт.

For Mason Type only

1шт.

8

S79924

WASHER

leather back up

2шт.

For Mason Type only

1шт.

9

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING - 1.296" ID x 1.562" OD

2шт.

For Mason Type only

1шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE, swivel

1шт.

Change in listing

1шт.

For Mason Type only

1шт.

11

NSS

NOT SOLD SEPARAT

STEM, swivel

1шт.

Change in listing

1шт.

For Mason Type only

1шт.
