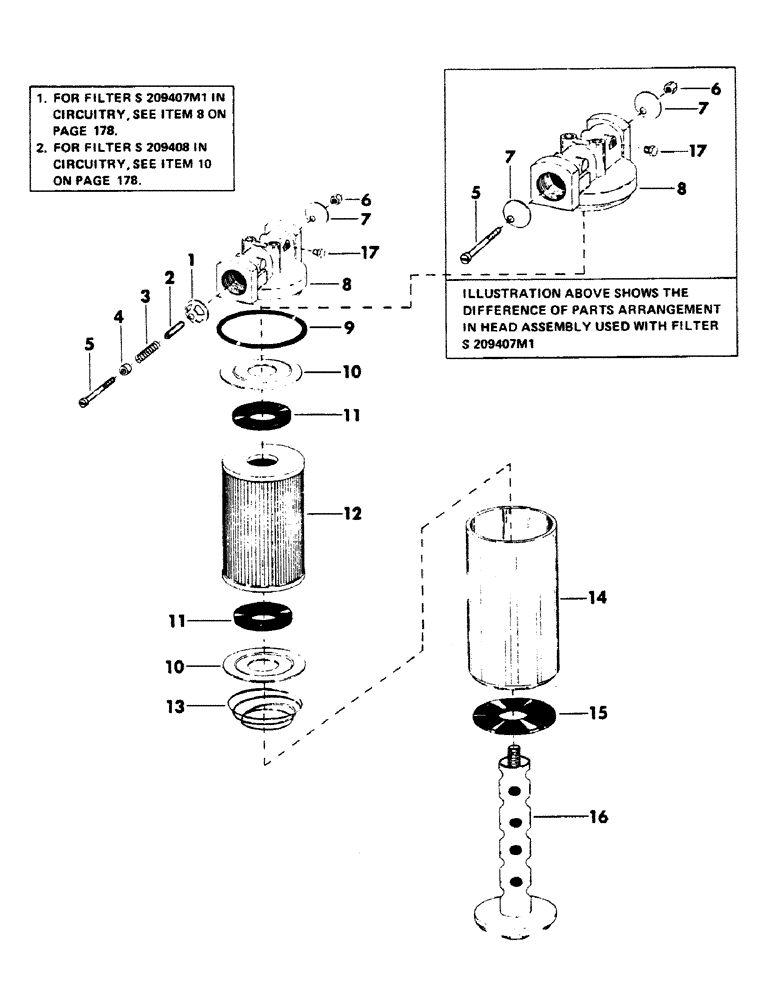

Запчасти Case 40BLC (240) - HYDRAULIC OIL FILTERS (07) - HYDRAULIC SYSTEM

S209407

FILTER

hydraulic oil - complete (Consists of items 5 thru 17)

1шт.

S209408

FILTER

hydraulic oil - complete (Consists of items 1 thru 17)

1шт.

1

T29784

GUIDE

by-pass valve - (Used with filter S209408 only)

1шт.

Change in listing

1шт.

2

T29783

SPACER

by-pass valve - (Used with filter S209408 only)

1шт.

Change in listing

1шт.

3

T37484

SPRING

by-pass - 15 PSI - (Used with filter S209408 only)

1шт.

4

T29780

CYLINDER END CAP

CAP, by-pass stem - (Used with filter S209408 only)

1шт.

Change in listing

1шт.

5

169-86

SCREW,Fil Hd, #8 - 32 x 1 3/4"

1шт.

6

131-552

NUT,#8-32

NUT

1шт.

7

T29785

VALVE

by-pass - (Quantity of 2 used with S209407M1 filter and quantity of 1 used with S209408 filter)

1шт.

8

S60100

HEAD

- (Includes item 17)

1шт.

9

T29789

SEALING RING,4.35" ID x 0.25" Width

"O" RING

1шт.

10

S63724

WASHER

back up

2шт.

11

W12214

GASKET

2шт.

12

S89348

FILTER, ENGINE OIL

ELEMENT, filter, filter - 100 mesh - (Used with S209407M1 filter only)

1шт.

S62434

FILTER, ELEMENT

ELEMENT, filter - 20 micron - (Used with S209408M1 filter only)

1шт.

13

T29793

SPRING

conical

1шт.

14

T29794

HOUSING

filter

1шт.

15

T29795

GASKET

1шт.

16

T29726

POST

center - (Cast iron)

1шт.

17

221-663

PLUG,Hex Hd, 3/8"-18

pipe - 3/8" NPT

1шт.
