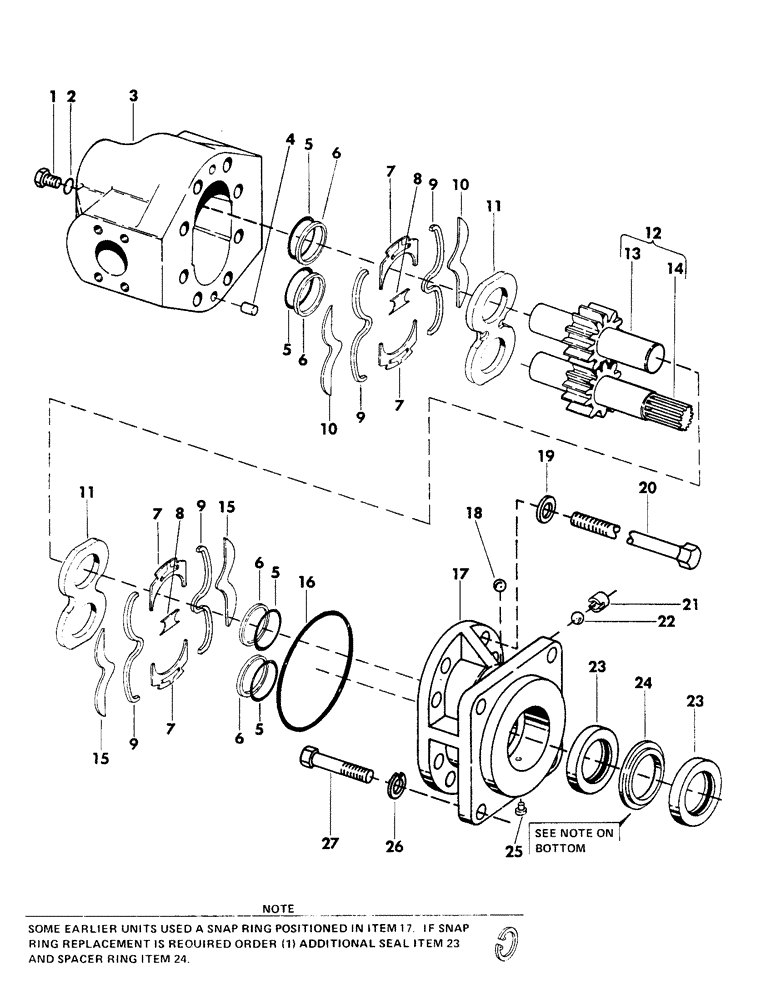

Запчасти Case 40BLC (236) - TRACK DRIVE MOTOR, (USED ON UNITS WITH SERIAL NUMBER 883 AND AFTER) (07) - HYDRAULIC SYSTEM

S223210

MOTOR, HYDRAULIC

track drive - complete (Consists of items 1 thru 25)

2шт.

1

76349

PLUG,9/16" - 18 ORB

Drain Hex Hd, 9/16"-18 ORB

1шт.

2

S98647

"O" RING, plug

1шт.

3

S98634

BODY

- (Includes item 28)

1шт.

4

D41414

PIN

DOWEL

2шт.

5

S98647

"O" RING

4шт.

6

S113607

OIL SEAL

RING, back up - (Supersedes S98642)

4шт.

Change in listing

1шт.

7

S113608

SEPARATOR

end - (Supersedes S98643)

2шт.

Change in listing

1шт.

8

SEPARATOR, center - (Supersedes S98644)

2шт.

9

S113609

SEPARATOR

STRIP, sealing - (Supersedes S98645)

4шт.

Change in listing

1шт.

10

S108884

LARGE PLATE

PLATE, isolation - (Bottom) - (Rounded edges) - (Supersedes S98640)

2шт.

11

S98638

PLATE

pressure

2шт.

12

S108889

KIT

GEAR KIT - (Includes items 13 and 14) (Supersedes S98652)

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR, idler

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR, drive

1шт.

15

S108885

LARGE PLATE

PLATE, isolation - (Top) - (Square edges) - (Supersedes S98639)

2шт.

16

L35781

O-RING,4-1/4" ID x 4-7/16" OD x 3/32"

"O" RING, body

1шт.

17

S108883

FLANGE - (Supersedes S98637) - (Includes item 28)

1шт.

18

211-101

BALL,1/4" Dia, Stainless

2шт.

19

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

flat - 1/2"

8шт.

20

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

21

S98641

RETAINER

check valve

2шт.

22

S17763

BALL

- (1/2" diameter)

2шт.

23

S98646

SEAL

viton - (Teflon)

2шт.

24

D41419

RING

snap - (Supersedes S108888 spacer ring)

1шт.

Change in listing

1шт.

Some earlier units used a snap ring positioned in Ref. 17. If snap ring replacement is required order (1) additional seal Ref. 23 and spacer

1шт.

25

S113614

VALVE, PRESSURE RELI

VALVE, relief - (Supersedes S108886)

1шт.

Change in listing

1шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

CPSW - 1/2" NC x 1-1/4" gr 8 - (12 point) - (Mounts motor to brake) - (Supersedes S2466)

4шт.

28

L32840

BUSHING

- (Not illustrated)

4шт.

Added listing

1шт.

29

S98651

SEAL

KIT seal

1шт.

Added listing

1шт.

30

S108890

SEAL

KIT service

1шт.
