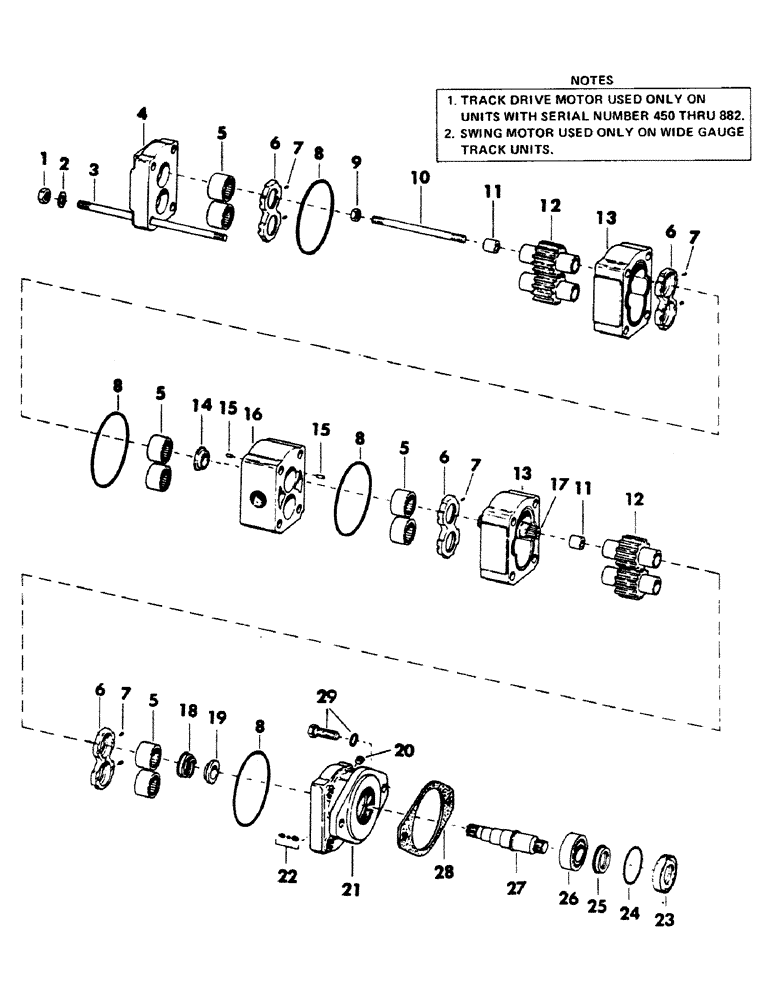

Запчасти Case 40BLC (232) - SWING AND TRACK DRIVE MOTORS (07) - HYDRAULIC SYSTEM

S39993

MOTOR

swing and track drive - complete - (Consists of items 1 thru 27) - (2 used as track drive motors) - (See notes 1 and 2)

3шт.

1

25-119

NUT,9/16"-18, G5

- 9/16" NC

4шт.

2

D31957

WASHER

flat - 21/32" ID x 1-1/4" OD x 3/16"

4шт.

3

A76269

SEAL

STUD, connecting - external

4шт.

4

A24842

COVER, port end

1шт.

5

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

8шт.

6

D31955

PLATE

thrust

4шт.

7

S17682

SEAL

pocket (Bulk) - 2 strips makes enough seals for tandem motor

2шт.

8

S83751

SEAL

"O" RING - 4.109" ID x 4.375" OD - (Supersedes S6333)

4шт.

9

S63533

LOCK NUT

NUT, lock

1шт.

10

S76268

STUD, connecting - internal

1шт.

11

S76245

SPACER

2шт.

12

S72565

GEAR-SET

GEAR SET - 1-3/4"

2шт.

13

S75508

HOUSING

gear

2шт.

14

S63528

BUSHING

shaft

2шт.

15

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

2шт.

16

S72899

CARRIER

bearing

1шт.

17

S63530

SHAFT

connecting

1шт.

18

D31953

VALVE SPRING

SPRING

1шт.

19

D31952

BUSHING

shaft

1шт.

20

221-841

PLUG

socket pipe - 1/4" NPT - (Used in neck of item 19)

1шт.

21

S77722

COVER

shaft end

1шт.

22

S61749

VALVE

ASSEMBLY, check

2шт.

23

S70415

RETAINER

RING, retainer

1шт.

24

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

25

S70416

OIL SEAL

high pressure

1шт.

26

S63513

TAPERED BEARING

BEARING, tapered

1шт.

27

S64277

SHAFT

1шт.

28

S203387

GASKET

- (Used on swing motor)

1шт.

29

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Used on track drive motor) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Used on swing motor Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
