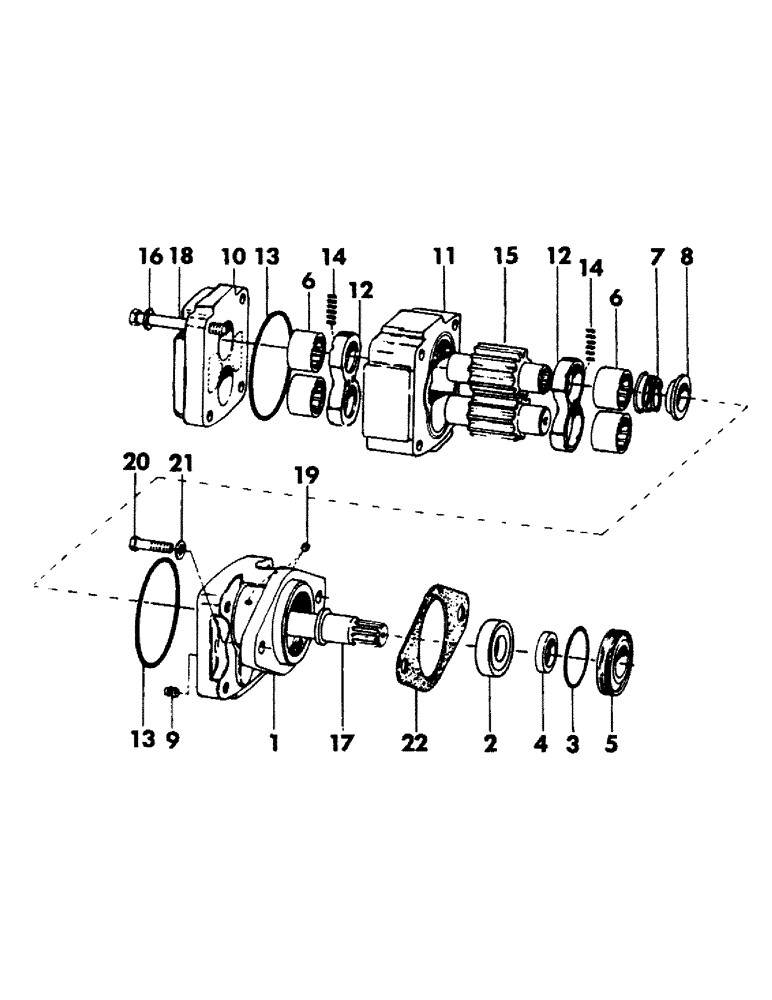

Запчасти Case 40BLC (231) - SWING MOTOR, (USED ON STANDARD GAUGE TRACK UNITS) (07) - HYDRAULIC SYSTEM

S33530

MOTOR

swing - complete (Consists of items 1 thru 19)

1шт.

1

S77722

COVER

shaft end

1шт.

2

S63513

TAPERED BEARING

BEARING, roller

1шт.

3

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

4

S70416

OIL SEAL

high pressure

1шт.

5

S70415

RETAINER

RING, retaining

1шт.

6

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

4шт.

7

D31953

VALVE SPRING

SPRING

1шт.

8

D31955

PLATE

BUSHING, shaft

1шт.

9

S61749

VALVE

CHECK

2шт.

10

S61750

COVER

port end - (With 2-3/4" OD tube ports)

1шт.

11

S67295

HOUSING

gear - (No ports)

1шт.

12

D41391

O-RING

PLATE, thrust

2шт.

13

D35673

SEAL

"O" RING

2шт.

14

D31957

WASHER

SEAL, pocket (Bulk) - 6" long, Serial Range: (Cut-length)

1шт.

15

S67298

GEAR-SET

GEAR SET - 2-1/2"

1шт.

16

D31957

WASHER

flat - 5/8"

4шт.

17

S64277

SHAFT

- (13 tooth spline)

1шт.

18

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

CPSW - 5/8" NC x 5-3/4" gr 5

4шт.

19

221-841

PLUG

pipe - 1/4" NPT

2шт.

20

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

S203387

GASKET

1шт.
