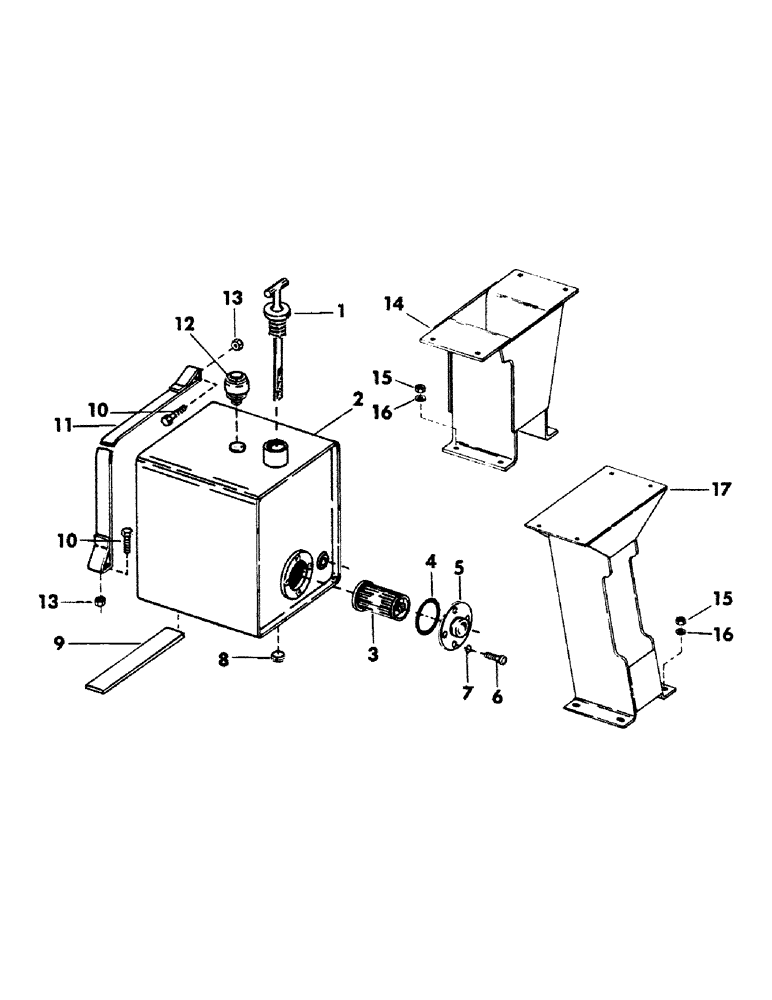

Запчасти Case 40BLC (230) - HYDRAULIC OIL RESERVOIR AND MOUNTING HARDWARE (07) - HYDRAULIC SYSTEM

1

S93220

DIPSTICK

1шт.

2

S506161

TANK

RESERVOIR, hydraulic oil

1шт.

3

S26293

FILTER SCREEN

FILTER, oil - (100 mesh)

1шт.

4

S6334

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - 4.234" ID x 4.500" OD

1шт.

5

S200926

FLANGE, filter mounting

1шт.

6

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

7

D26270

WASHER, SEALING

WASHER, seal

4шт.

8

221-845

PLUG,Hex Soc, 3/4"-14

pipe - 3/4" NPT

1шт.

9

S94118

PAD

rubber

2шт.

10

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CPSW - 3/8" NC x 1-3/4" gr 5

4шт.

11

S92073

STRAP

mounting

2шт.

12

A75179

BREATHER

1шт.

13

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

14

S506118

BRACKET, hydraulic reservoir - (Used on units with Detroit Diesel 4-71 engine)

1шт.

15

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2"

4шт.

16

196-15

WASHER,17/32" x 1 1/6" x .134"

- 1/2"

4шт.

17

S506190

BRACKET , hydraulic reservoir - (Used on units with Case 504BD diesel engine)

1шт.
