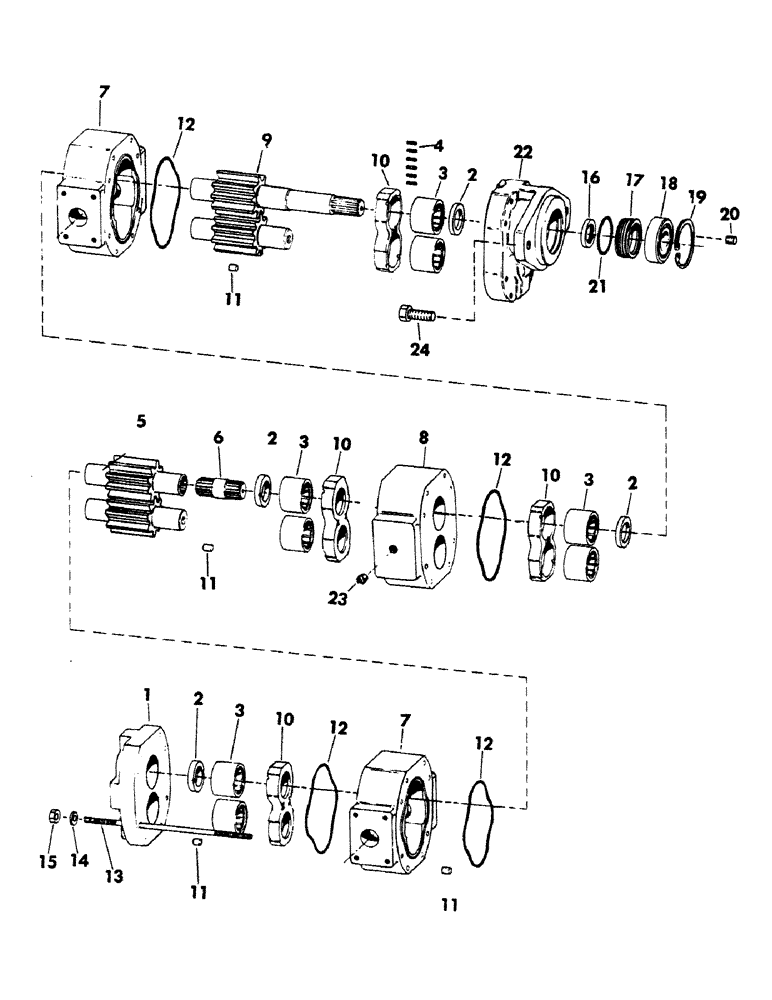

Запчасти Case 40BLC (228) - HYDRAULIC TANDEM PUMP (07) - HYDRAULIC SYSTEM

S513121

PUMP

hydraulic tandem - complete (Consists of items 1 thru 23)

1шт.

1

S114851

COVER, port end

1шт.

2

S82765

SEALING RING

RING, seal

4шт.

3

A16793

NEEDLE BEARING

BEARING, roller

8шт.

4

W14886

PLUG

SEAL, pocket

24шт.

5

S82800

GEAR, set

1шт.

6

S88763

SHAFT, connecting

1шт.

7

S114852

HOUSING, gear

2шт.

8

S114854

CARRIER, bearing

1шт.

9

S82797

GEAR

set

1шт.

10

S114850

PLATE, thrust

4шт.

11

S114853

DOWEL

PIN, dowel

4шт.

12

S82795

GASKET

seal

4шт.

13

S82801

STUD

8шт.

14

D31957

WASHER

8шт.

15

L32112

NUT

8шт.

16

A16796

SEAL

lip

1шт.

17

W14025

RETAINER

SEAL, retainer

1шт.

18

S82767

BEARING

ball

1шт.

19

49477

RING, SNAP

3.156", Int, #315

1шт.

20

L32320

PLUG

SCREW, set - 7/16" NF x 3/8"

1шт.

21

S5739

O-RING

"O" RING

1шт.

22

S114849

COVER, shaft end

1шт.

23

221-841

PLUG

pipe - 1/4" NPT

1шт.

24

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Mounts pump to engine) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.
