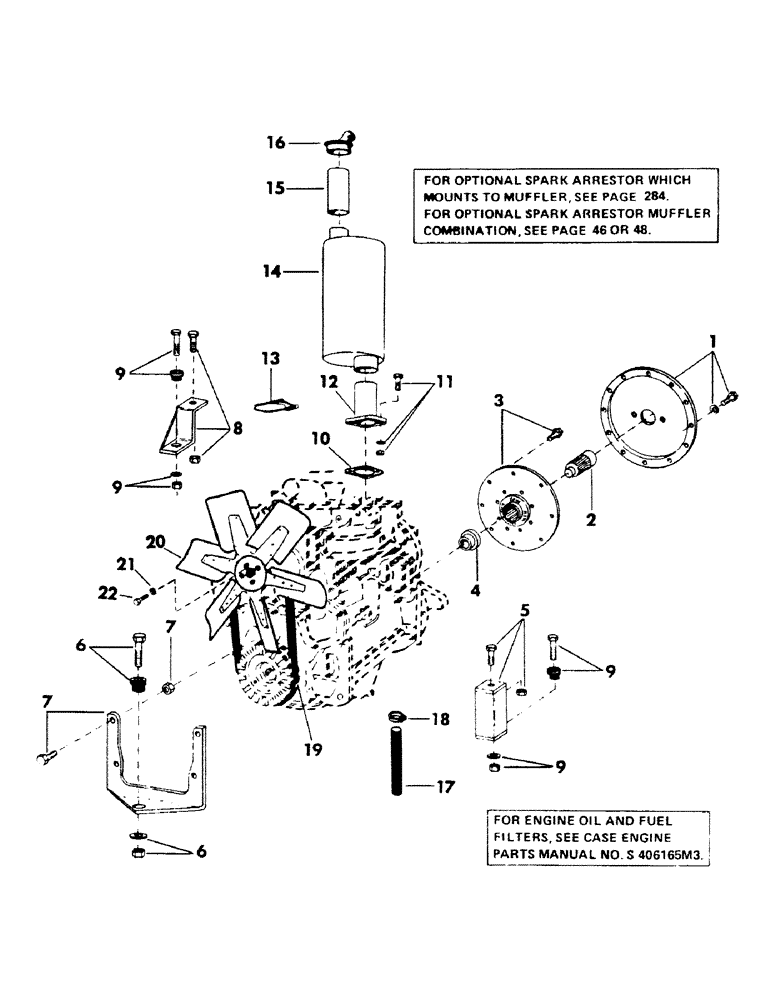

Запчасти Case 40BLC (042) - CASE 504BD DIESEL ENGINE (DROTT NO. A137712) AND ATTACHING PARTS (01) - ENGINE

1

S52615

MOUNTING PARTS

MOUNTING, hydraulic pump

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

S63201

COUPLING

1шт.

3

S33201

DAMPER

DAMPENER

1шт.

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

CPSW - 3/8" NC x 5/8" gr 5

8шт.

4

S87483

ADAPTER

SPACER

1шт.

5

S220171

BRACKET, rear engine mounting - (Left hand)

1шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

131-950

NUT, self locking - 3/4" NC

1шт.

6

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

CPSW - 3/4" NC x 4-1/4" gr 5

1шт.

S93392

MOUNTING PARTS

MOUNT, rubber

1шт.

195-2270

WASHER,13/16" x 3" x .238", HDN

subbing

1шт.

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

1шт.

7

S219772

SUPPORT, front engine

1шт.

13-1249

CPSW - 3/4" NC x 3" gr 5

1шт.

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

1шт.

8

S220170

BRACKET, rear engine mounting - (Right hand)

1шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

1шт.

9

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

S93392

MOUNTING PARTS

MOUNT, rubber

1шт.

195-2270

WASHER,13/16" x 3" x .238", HDN

snubbing

1шт.

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

1шт.

10

S87740

GASKET

1шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

12

S215627

ADAPTER, exhaust - (Used on units with serial number 450 thru 759)

1шт.

S226162

FLANGE

ADAPTER, exhaust - (Used on units with serial number 760 and after)

1шт.

13

S65056

CLAMP

pipe - (Used on units with serial number 450 thru 759)

2шт.

S68529

CLAMP

pipe - (Used on units with serial number 760 and after)

2шт.

14

S502058

MUFFLER

- (Used on units with serial number 450 thru 759)

1шт.

S508420

MUFFLER

- (Used on units with serial number 760 and after)

1шт.

15

S93394

PIPE, EXHAUST SYSTEM

PIPE, exhaust - (Used on units with serial number 450 thru 759)

1шт.

S98927

PIPE CLAMP

PIPE, exhaust - (Used on units with serial number 760 and after)

1шт.

16

D33884

CAP

exhaust pipe - (Used on units with serial number 450 thru 759)

1шт.

A19795

CAP

exhaust pipe - (Used on units with serial number 760 and after)

1шт.

17

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 24" long (Mounts to breather pipe on engine) 1.00" ID Bulk, SAE 100R3

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, hose

1шт.

19

S88836

SET OF BELTS,0.69" W x 60.00" L

V-Belt, Fan and alternator (Matched set of 2) 0.69" W x 60.00" L

1шт.

20

A15520

FAN

1шт.

Added listing

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Added listing

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

Added listing

1шт.
