Запчасти Case 40BLC (226) - HYDRAULIC TANDEM PUMP (07) - HYDRAULIC SYSTEM

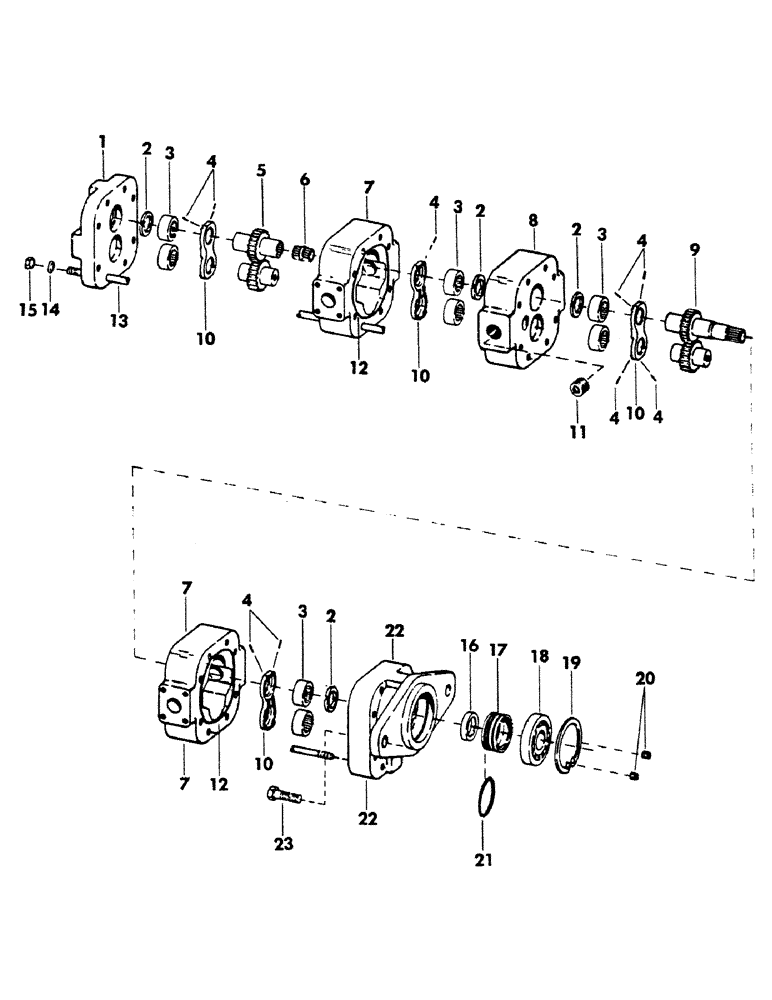

PUMP, hydraulic tandem - complete (Consists of items 1 thru 22) - (For complete replacement of S502120 order S513121 on page 228)

1шт.

Change in listing

1шт.

1

W14027

COVER

port end

1шт.

2

S82765

SEALING RING

shaft

4шт.

3

A16793

NEEDLE BEARING

BEARING, roller

8шт.

4

S82794

SEAL

-, Serial Range: (Cut-length)

2шт.

5

S82800

GEAR, set - 1-1/4"

1шт.

6

S82799

SHAFT, connecting

1шт.

7

S82764

HOUSING

gear

2шт.

8

S82798

CARRIER, bearing

1шт.

9

S82797

GEAR

set - 1-1/4"

1шт.

10

S82770

PLATE

thrust

4шт.

11

221-841

PLUG

pipe - 1/4" NPT

1шт.

12

S82795

GASKET

4шт.

13

S82801

STUD

- 5/8" NC

8шт.

14

D31957

WASHER

flat

8шт.

15

86625068

NUT,5/8"-11, G8

- 5/8" NC

8шт.

16

A16796

SEAL

lip

1шт.

17

W14025

RETAINER

seal

1шт.

18

100-21315

SNAP RING,3.156", Int, #315

BEARING, CLAMP, P-type

1шт.

19

L32320

PLUG

RING, snap

1шт.

20

S18800

PLUG

SCREW, set - 7/16" NF x 3/8"

1шт.

21

S5739

O-RING

"O" RING - 2.612" ID x 2.812" OD

1шт.

22

W14024

FLANGE

COVER, shaft end

1шт.

23

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Mounts pump to engine) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.
