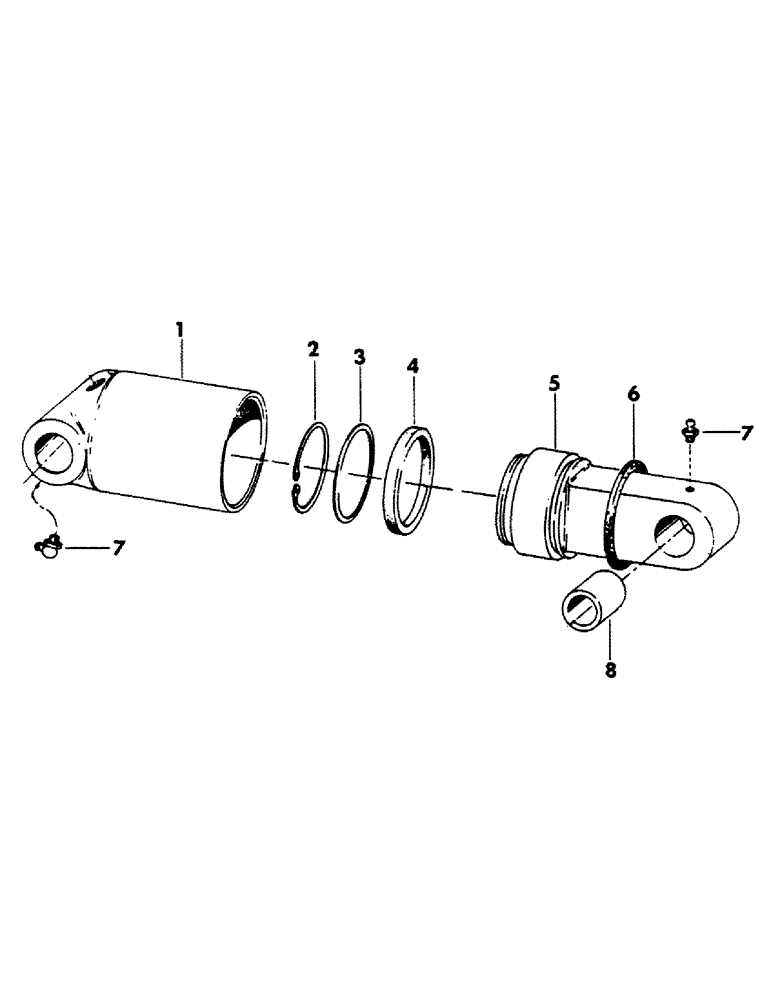

Запчасти Case 40BLC (223) - LEVELER CYLINDER, (5.25" ID X 5.97" STROKE), (USED WITH WIDE GAUGE TRACK UNITS) (07) - HYDRAULIC SYSTEM

S59819

CYLINDER

leveler - complete (Consists of items 1 thru 8)

4шт.

1

S213924

TUBE, cylinder 1.25" OD x 13.92, 7.55" L

1шт.

2

F62020

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

3

S85707

WASHER

retaining

1шт.

4

S85706

SEAL

piston

1шт.

5

S503496

PISTON

AND ROD - (Includes item 8)

1шт.

6

S85705

SEAL

wiper

1шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

8

S85716

BUSHING

1шт.
