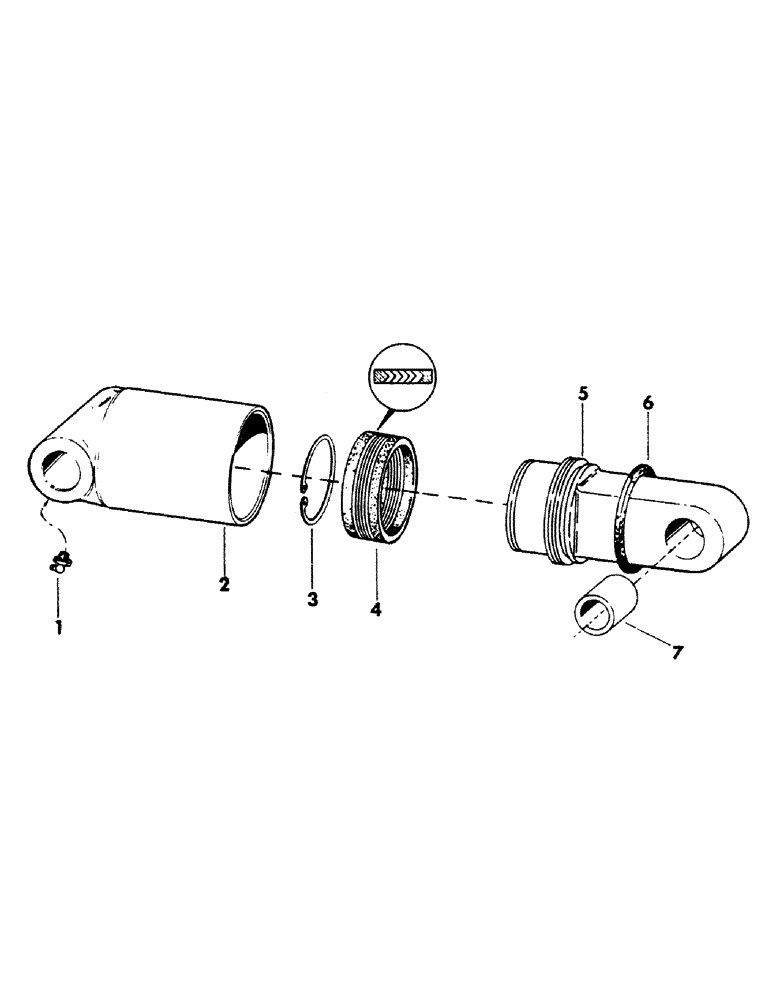

Запчасти Case 40BLC (222) - LEVELER CYLINDER, (6.25" ID X 6.45" STROKE), (USED WITH STANDARD GAUGE TRACK UNITS) (07) - HYDRAULIC SYSTEM

S56810

CYLINDER

CYLLINDER, leveler - complete (Consists of items 1 thru 7)

2шт.

1

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

2

S11166

TUBE, cylinder

1шт.

3

H756064

SNAP RING,#500, 4.692", Ext

RING, retaining

1шт.

4

S209061

SEAL ASSY.

"V" RING CUP ASSEMBLY

1шт.

5

S211136

PISTON ASSY.

PISTON AND ROD - (Includes item 7)

1шт.

6

S64146

SEAL

RING, wiper - (Felt)

1шт.

7

S202130

THREADED BUSHING

BUSHING

1шт.
