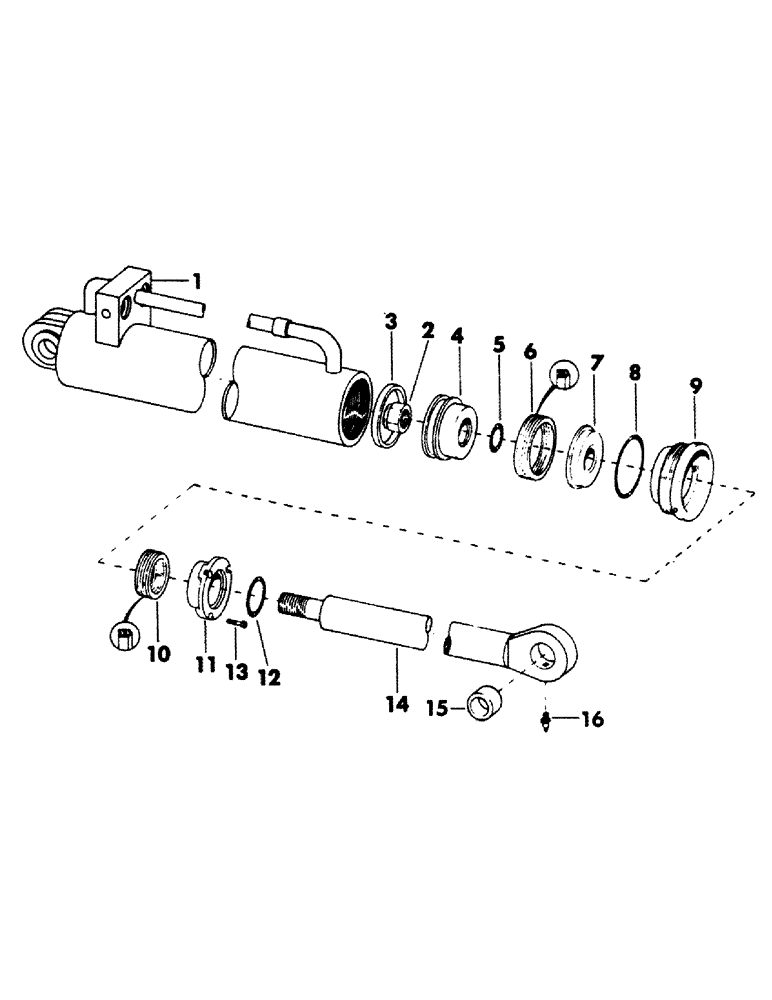

Запчасти Case 40BLC (218) - * GRAB ARM AND CUTTER ARM CYLINDER, (4.75" X 10.00" STROKE),(USED WITH 20" AND 24" FELLER BUNCHER) (07) - HYDRAULIC SYSTEM

S601368

CYLINDER

grab arm - complete (Consists of items 1 thru 16)

2шт.

1

S504947

TUBE, cylinder 13.12, 5.85" L

1шт.

2

131-24

NUT,7/8"-14, GB

NUT, self locking - 1-1/2" NF

1шт.

3

S29914

RING

wear

1шт.

4

S29909

PISTON, half - (With "O" ring seat)

1шт.

5

S5815

O-RING,1.49" ID x 1.75" OD x 0.143"

"O" RING - 1.484" ID x 1.750" OD

1шт.

6

S29913

SEAL

"V" RING

1шт.

7

S29911

PISTON, half

1шт.

8

S5943

O-RING,4.6" ID x 0.21" Width

"O" RING - 4.600" ID x 5.000" OD

1шт.

9

S202417

HEAD (CYLINDER)

HEAD, cylinder

1шт.

10

S28515

PACKING

"V" RING

1шт.

11

S200834

FLANGE

packing

1шт.

12

S22940

WIPER SEAL

wiper

1шт.

13

165-133

HEX SOC SCREW,Prev Torque, 3/8" - 24 x 1"

CPSW, self locking - 3/8" NF x 1"

3шт.

14

S205819

PISTON ROD

ROD, piston - (Includes item 15)

1шт.

15

S23796

BUSHING

1шт.

16

2191

FUEL FILTER

FITTING, grease - 1/8" NPT - (Straight)

1шт.
