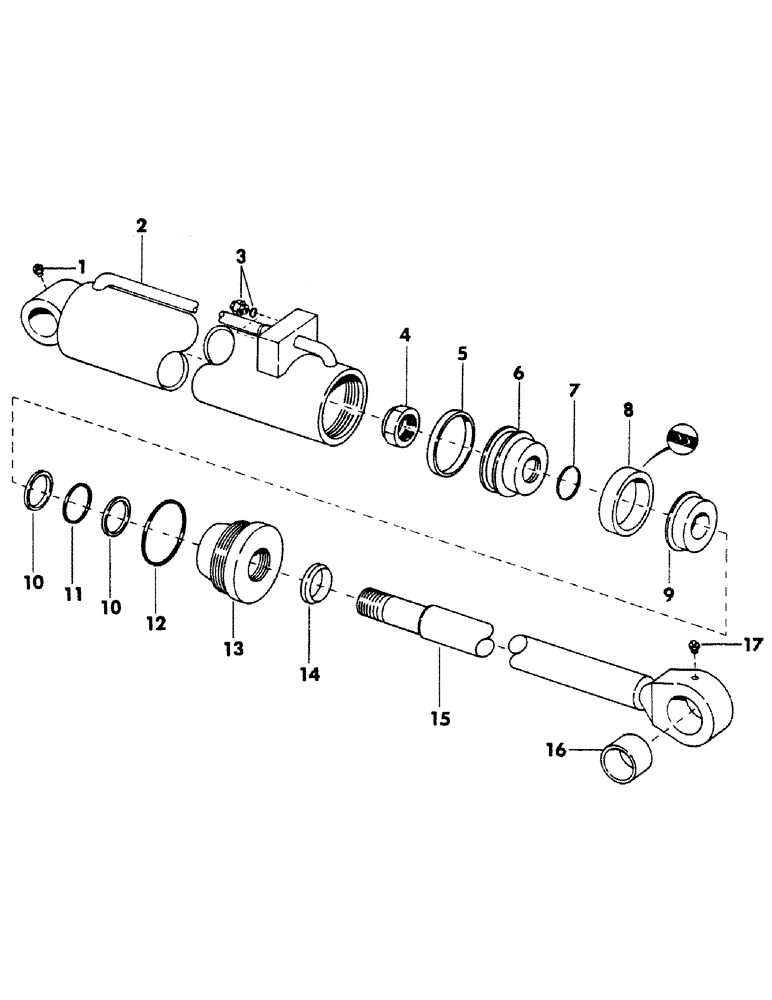

Запчасти Case 40BLC (216) - GRAB ARM CYLINDER, (3.50" ID X 9.70" STROKE), (USED WITH 16" FELLER BUNCHER) (07) - HYDRAULIC SYSTEM

S504748

CYLINDER, grab arm - complete (Consists of items 1 thru 16)

2шт.

1

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

2

S216140

TUBE, cylinder - (Includes item 1)

1шт.

3

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4" - 16 male - 37 degree flared (Includes "O" ring)

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

4

S9022

NUT, self locking - 1-1/8" NF

1шт.

5

S48419

RING

wear

1шт.

6

S28097

PISTON

half

1шт.

7

S5809

O-RING

"O" RING - 1.109" ID x 1.375" OD

1шт.

8

S26550

CUP ASSY.

PACKING, piston

1шт.

9

S49783

PISTON, half

1шт.

10

S10923

RING

WASHER, back up - (Leather)

2шт.

11

S6165

O-RING,1.485" ID x 1.875" OD x 0.215"

"O" RING - 1.475" ID x 1.875" OD

1шт.

12

S6327

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

"O" RING - 3.359" ID x 3.624" OD

1шт.

13

S46840

HEAD, cylinder

1шт.

14

S46869

RING

wiper

1шт.

15

S202796

ROD, piston - (Includes items 16 and 17)

1шт.

16

S64396

BUSHING

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.
