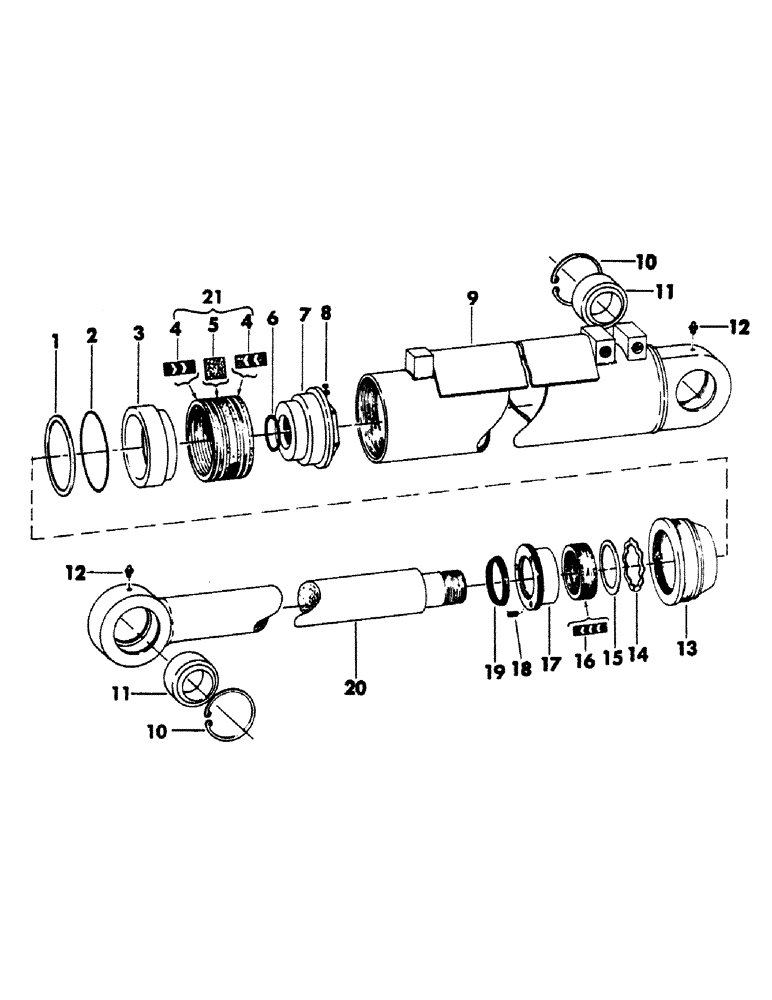

Запчасти Case 40BLC (214) - SHEAR ARM CYLINDER, (8.00" ID X 29.50" STROKE), (USED WITH 24" FELLER BUNCHER) (07) - HYDRAULIC SYSTEM

S952529

CYLINDER, shear arm - complete (Consists of items 1 thru 22)

1шт.

1

S86915

RING

back up

1шт.

2

S6036

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

"O" RING - 7.475" ID x 8.000" OD

1шт.

3

S504034

PISTON, half - with "o" ring seat - (Rod end)

1шт.

4

NSS

NOT SOLD SEPARAT

PACKING, "V" ring piston

2шт.

5

NSS

NOT SOLD SEPARAT

PACKING, piston

1шт.

6

S5930

O-RING,0.21" Thk x 2.975" ID, -337, Cl 5, 75 Duro

"O" RING - 2.975" ID x 3.375" OD

1шт.

7

S504036

PISTON, half - (Base end)

1шт.

8

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

4шт.

9

S504941

TUBE, cylinder - (Includes 1 of items 10 and 11) 44.49" L

1шт.

10

39325

SNAP RING,4.75", Int, #475

Ring, Snap, 4.75", Int, #475

2шт.

11

S215047

BUSHING

self aligning

2шт.

12

1219-1

FITTING, grease - 1/8" NPT - (Straight)

2шт.

13

S504032

HEAD, cylinder

1шт.

14

S86889

WASHER, wavy

1шт.

15

S86887

WASHER

flat

1шт.

16

S215048

PACKING

"V" ring - (Rod end)

1шт.

17

S215046

FLANGE, packing

1шт.

18

178-30

SET SCREW,Hex Soc, 1/4"-20 x 3/4"

SCREW, machine - 1/4" NC x 3/4"

1шт.

19

S86888

WIPER

SEAL, oil

1шт.

20

S504944

ROD, piston - (Includes 1 of items 10 and 11)

1шт.

21

S218620

RING

PACKING, piston - (Includes items 4 and 5)

1шт.
