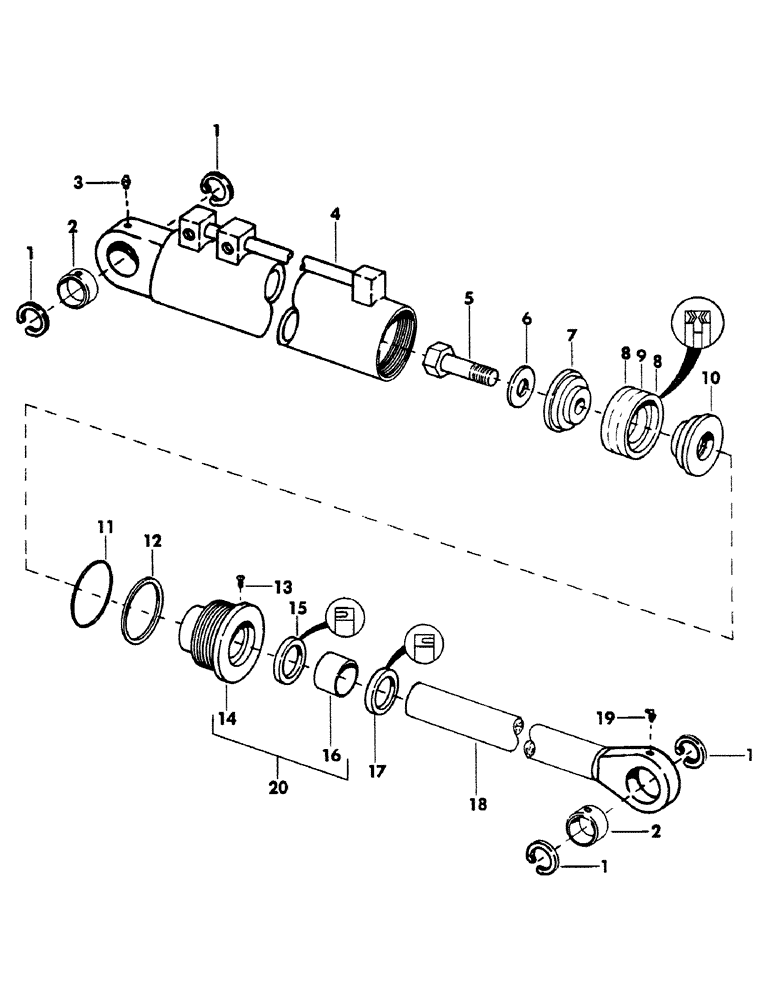

Запчасти Case 40BLC (212) - SHEAR ARM CYLINDER, (6.50" ID X 24.50" STROKE), (USED WITH 20" FELLER BUNCHER) (07) - HYDRAULIC SYSTEM

S602289

CYLINDER, shear arm - complete (Consists of items 1 thru 20)

1шт.

1

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

4шт.

2

R26680

SPHERICAL BEARING,63.5mm ID x 100.01mm OD x 55.6mm W

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.

4

S602591

TUBE, cylinder - (Includes 2 of item 1)

1шт.

5

28-3272

BOLT,Hex, 2" - 12 x 4-1/2", Gr 8

1шт.

6

G32653

WASHER

1шт.

7

S220019

PISTON

split-bolt

1шт.

8

S92642

PACKING

"V" PACKING

2шт.

9

S220020

PACKING

RING, center bearing

1шт.

10

S220043

PISTON

split - (Rod)

1шт.

11

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING

1шт.

12

S92641

RING

back up

1шт.

13

187-1820

SELF-TAP SCREW,#8 x 1/4"

SCREW, self tapping - no. 8 NF x 1/4"

1шт.

14

S505937

GLAND

packing

1шт.

15

S220044

ROD

"U" CUP

1шт.

16

S92651

BUSHING

1шт.

17

S92653

WIPER

rod

1шт.

18

S220067

ROD, piston - (Includes 2 of item 1)

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

S220042

GLAND

packing - (Consists of items 14 and 16)

1шт.
