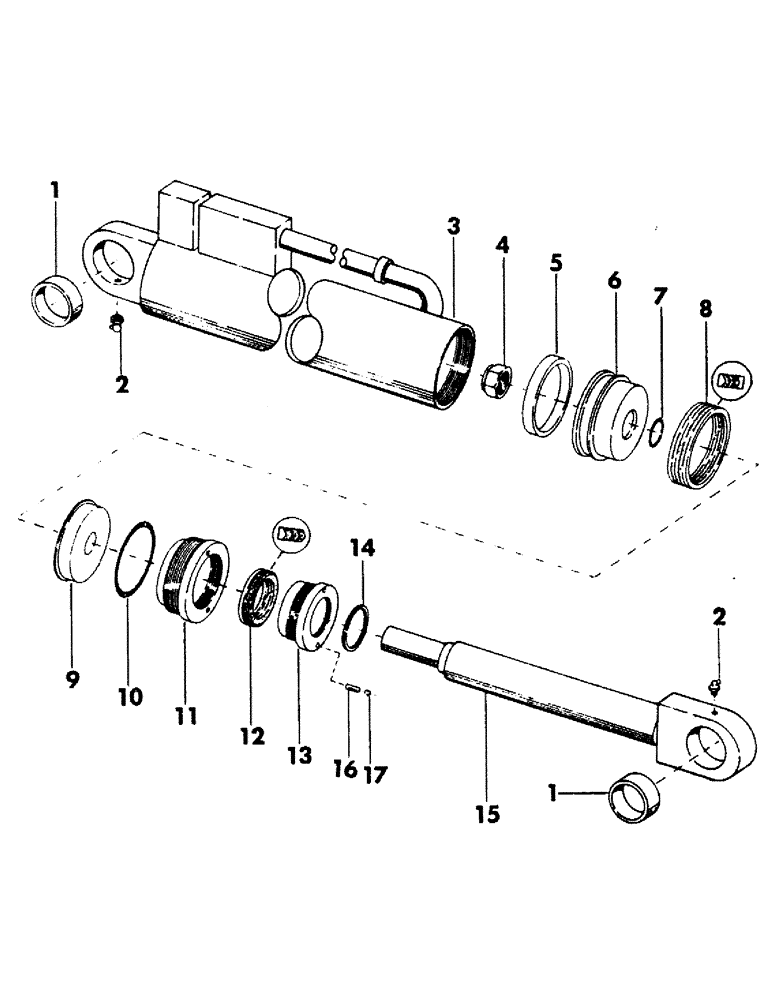

Запчасти Case 40BLC (211) - SHEAR ARM CYLINDER, (6.25" ID X 15.00" STROKE), (USED WITH 16" FELLER BUNCHER) (07) - HYDRAULIC SYSTEM

S502258

CYLINDER, shear arm - (Consists of items 1 thru 17)

1шт.

1

S202195

BUSHING

2шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

3

S211538

TUBE ASSEMBLY 25.62" L

1шт.

4

S80914

NUT

self locking

1шт.

5

S23716

SEAL

RING, wear

1шт.

6

S28239

PISTON

1шт.

7

S5920

RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

"O" RING - 1.725" ID x 2.125" OD

1шт.

8

S23717

SEAL

CUP ASSEMBLY

1шт.

9

S29929

PISTON

1шт.

10

S6028

O-RING,5.725" ID x 6.275" OD x 0.275"

"O" RING - 5.750" ID x 6.250" OD

1шт.

11

S28257

GLAND

HEAD, cylinder

1шт.

12

S25184

PACKING

V-RING CUP ASSEMBLY

1шт.

13

S28247

GLAND

FLANGE, packing

1шт.

14

S43987

RING

SEAL, wiper

1шт.

15

S211542

ROD, piston - (Includes 1 of item 2)

2шт.

16

178-839

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW, set - no. 10 NF x 5/8"

2шт.

17

178-846

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW, set - no. 10 NF x 1/4"

2шт.
