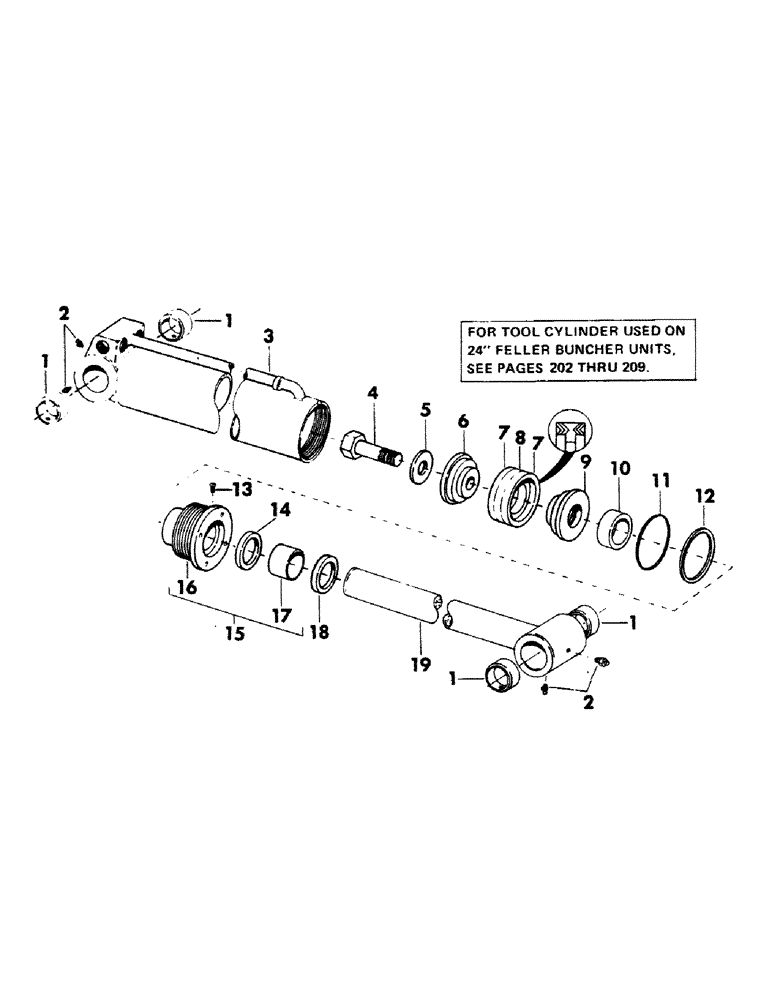

Запчасти Case 40BLC (210) - TOOL CYLINDER, (5.50" ID X 45.50" STROKE) (USED WITH 16" AND 20" FELLER BUNCHER) (07) - HYDRAULIC SYSTEM

S602297

CYLINDER

tool - complete (Consists of items 1 thru 19)

1шт.

1

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

4шт.

3

S602584

TUBE

cylinder - (Includes item 1)

1шт.

4

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

1шт.

5

G32666

WASHER

1шт.

6

D49165

PISTON

split - (Bolt end)

1шт.

7

D47207

GASKET KIT

"V" PACKING

2шт.

8

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING, center packing

1шт.

9

S220025

PISTON

split - (Rod end)

1шт.

10

S92645

SPACER

1шт.

11

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING

1шт.

12

S92644

RING

WASHER, back up

1шт.

13

187-1820

SELF-TAP SCREW,#8 x 1/4"

SCREW, self tapping - no. 8 NF x 1/4"

1шт.

14

D45571

ROD

SEAL, gland

1шт.

15

G34533

GLAND

packing - (Consists of items 16 and 17) - (Supersedes S220026)

1шт.

Change in listing

1шт.

16

NSS

NOT SOLD SEPARAT

GLAND

1шт.

17

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- (Supersedes S220008)

1шт.

Change in listing

1шт.

18

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER, rod

1шт.

19

S511875

ROD, piston - (Includes 2 of item 1) - (Supersedes S220021)

1шт.

Change in listing

1шт.

21

G34536

SEAL

KIT, seal repair (Consists of items 7, 11, 12, 14 and 18)

1шт.

Added listing

1шт.
