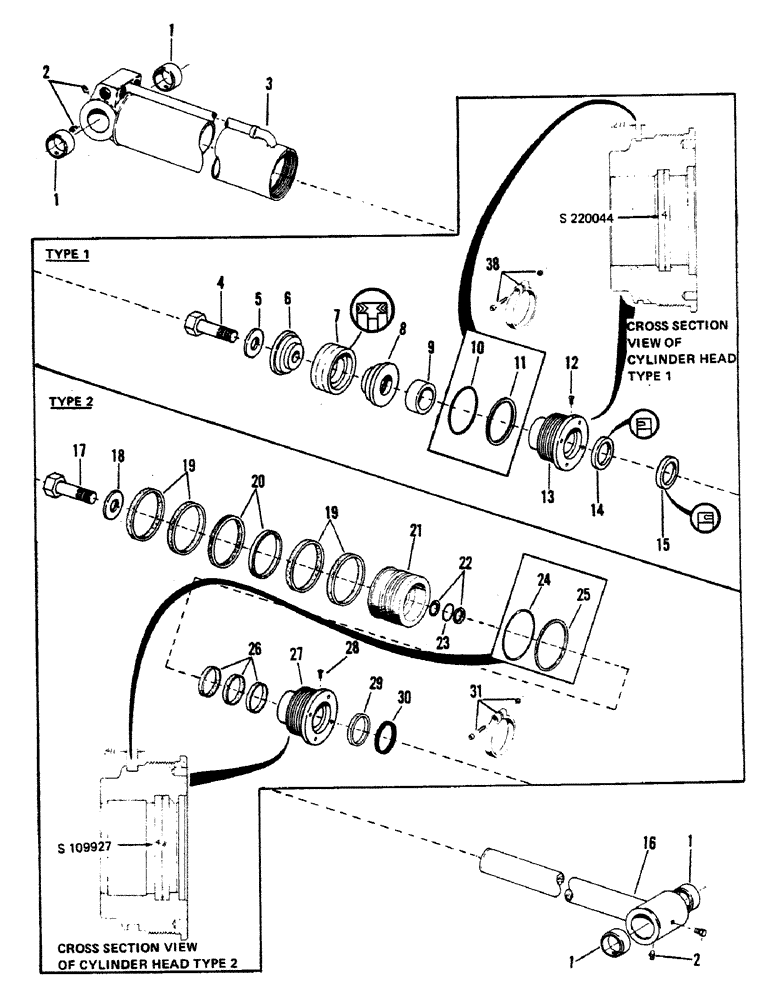

Запчасти Case 40BLC (202) - HOIST, CROWD AND TOOL CYLINDER, (6.53" ID X 45.50" STROKE),(USED AS HOIST AND CROWD CYLINDER) ON 16" (07) - HYDRAULIC SYSTEM

CYLINDER, hoist and crowd - (S602299 superseded by 608077) - (See notes 1, 2, 3, and 4)

1шт.

1

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

4шт.

2

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

4шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

3

S602587

TUBE, cylinder - (Includes 2 of item 1)

1шт.

4

23-3272

BOLT

1шт.

5

S98870

WASHER

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON, split - (Bolt end) - (S25563 superseded by kit S608053) (See note 3)

1шт.

7

S508271

PACKING

"V" PACKING

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON, split - (Rod end) - (S225622 superseded by kit S608053) (See note 3)

1шт.

9

S92652

SPACER

1шт.

10

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING (See note 4)

1шт.

11

S92641

RING

WASHER, back up (See note 4)

1шт.

12

187-1820

SELF-TAP SCREW,#8 x 1/4"

SCREW, self tapping - no. 8 NF x 1/4"

1шт.

13

NSS

NOT SOLD SEPARAT

HEAD, cylinder - (S508250 superseded by kit S608053) - (See note 3)

1шт.

14

S220044

ROD

SEAL, rod (See note 4)

1шт.

15

S92653

WIPER

rod (See note 4)

1шт.

16

S505934

ROD, piston - (Includes 2 of item 1)

1шт.

17

S104487

BOLT

1шт.

18

S98870

WASHER

1шт.

19

S97856

RING

wear

4шт.

20

S234340

SEAL

ASSEMBLY, piston

1шт.

21

S509505

PISTON

1шт.

22

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

back-up

2шт.

23

S6028

O-RING,5.725" ID x 6.275" OD x 0.275"

"O" RING

1шт.

24

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

"O" RING (See note 4)

1шт.

25

S99881

WASHER

RING, back-up (See note 4)

1шт.

26

S104133

OIL SEAL

RING, wear

3шт.

27

S509504

HEAD

1шт.

28

178-442

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 1/2", Flat Pt

SCREW, set

1шт.

29

S109927

SEAL

rod (See note 4)

1шт.

30

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER (See note 4)

1шт.

31

S226159

CLAMP

ASSEMBLY

1шт.

32

S96077

SEAL

red - (Not illustrated) (10CC)

1шт.

38

S606555

PACKAGE

KIT, service - (Head clamp) - (Includes mounting hardware)

1шт.

39

S606555

PACKAGE

KIT, service (Includes items 17 thru 31)

1шт.

40

S229891

KIT

cylinder head - (Includes items 24 thru 27, 29 and 30)

1шт.
