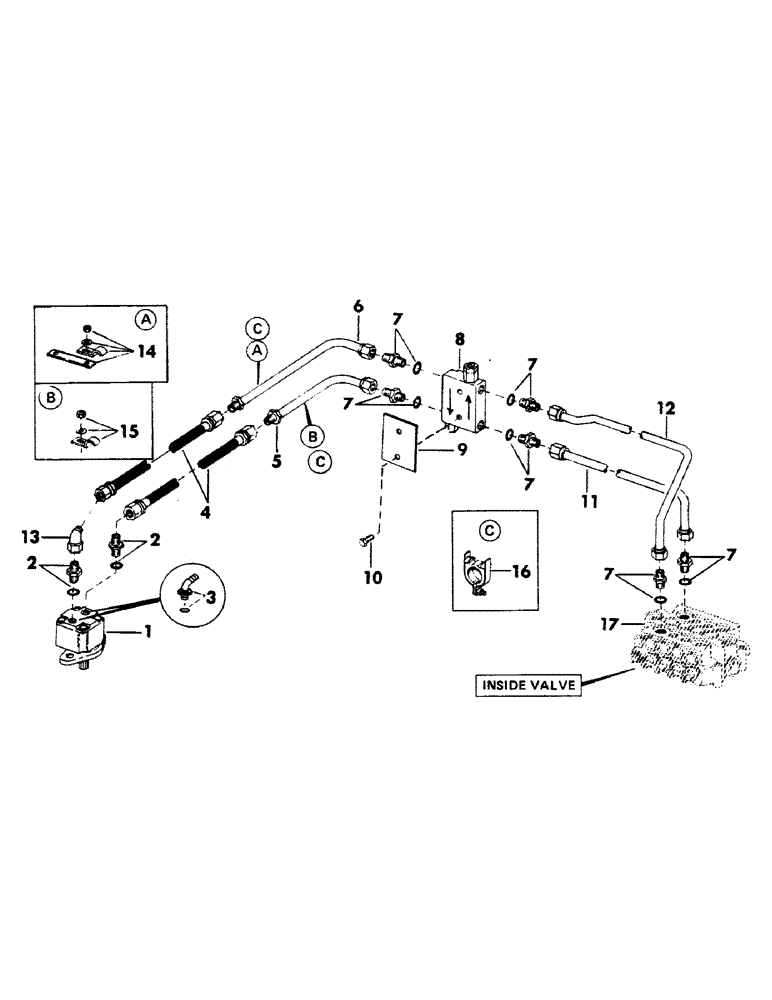

Запчасти Case 40BLC (196) - SWING MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

MOTOR, swing - (For breakdown, see page 231) - (Used on standard gauge track units only)

1шт.

MOTOR, swing - (For breakdown, see page 232) - (Used on wide gauge track units only)

1шт.

2

S7973

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-1/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "O" ring) - (Used on standard gauge track units only)

2шт.

S6065

RING

"O" RING - .924 ID x 1.156" OD

2шт.

3

S7952

ELBOW

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/8" - 12 male - 37 degree flared - (Includes "O" ring) - (Used on wide gauge track units only)

2шт.

S6073

RING

"O" RING - 1.475" ID x 1.711 OD

2шт.

4

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

5

S502077

TUBE,1.25" OD x 14, 5" L

LINE, hydraulic

1шт.

6

S502076

TUBE,1.25" OD x 12.5, 5" L

LINE, hydraulic

1шт.

7

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "O" ring)

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171 ID x 1.403" OD

6шт.

8

VLAVE, swing inline relief - (For breakdown, see page 249)

1шт.

9

S82529

PLATE, swing decal

1шт.

10

187-1519

CPSW - 3/8" NC x 7/8" gr 5

2шт.

11

S502075

TUBE,1.25" OD x 17.43, 5.8" L

LINE, hydraulic

1шт.

12

S502074

LINE,1.25" OD

hydraulic

1шт.

13

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree swivel - (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

1шт.

14

S77469

CLAMP

tube - (Used on units with serial number 450 thru 759)

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

195-105

WASHER,7/16"

flat - 1/2"

1шт.

S82087

BLOCK

spacer

1шт.

15

S74460

CLAMP, tube - (Used on units with serial number 450 thru 759)

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

195-103

WASHER,5/16"

flat - 1/2"

1шт.

16

S93266

CLAMP

tube - (Used on with serial number 760 and after)

2шт.

17

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.
