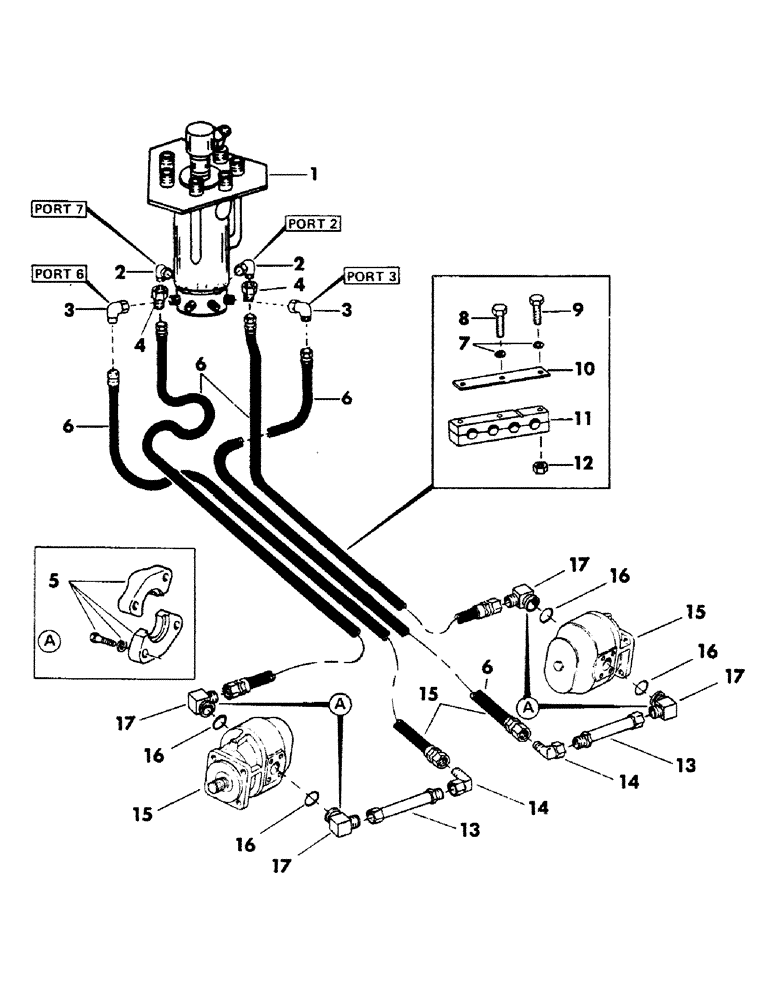

Запчасти Case 40BLC (190) - LOWER TRACK DRIVE MOTOR HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 6275249 AND AFTER) (07) - HYDRAULIC SYSTEM

1

SWIVEL - 7-port hydraulic - (For breakdown, see page 224)

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

90 degree swivel - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

4

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

ADAPTER

2шт.

5

A12301

CLAMP,Half

split

8шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

6

S401534

HOSE ASSY.

HOSE, high pressure - 1" ID x 66" long - (With 1-5/16" - 16 female pressed on couplings)

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

9

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

CPSW - 1/2" NC x 4-1/4" gr 5

1шт.

10

S79724

BAR

1шт.

11

S209695

BLOCK

wood - (Used on Wide Gauge Track units only)

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

S211648

LINE, hydraulic - (Used on Wide Gauge Track units only) 1" OD x 6" L

2шт.

14

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared - (Used on units with serial number 883 and after)

2шт.

15

MOTOR, track drive - (For breakdown, see page 236) - (Used on units with serial number 883 and after)

2шт.

16

S5815

O-RING,1.49" ID x 1.75" OD x 0.143"

"O" RING

4шт.

17

S234440

ELBOW

LINE, hydraulic

4шт.
