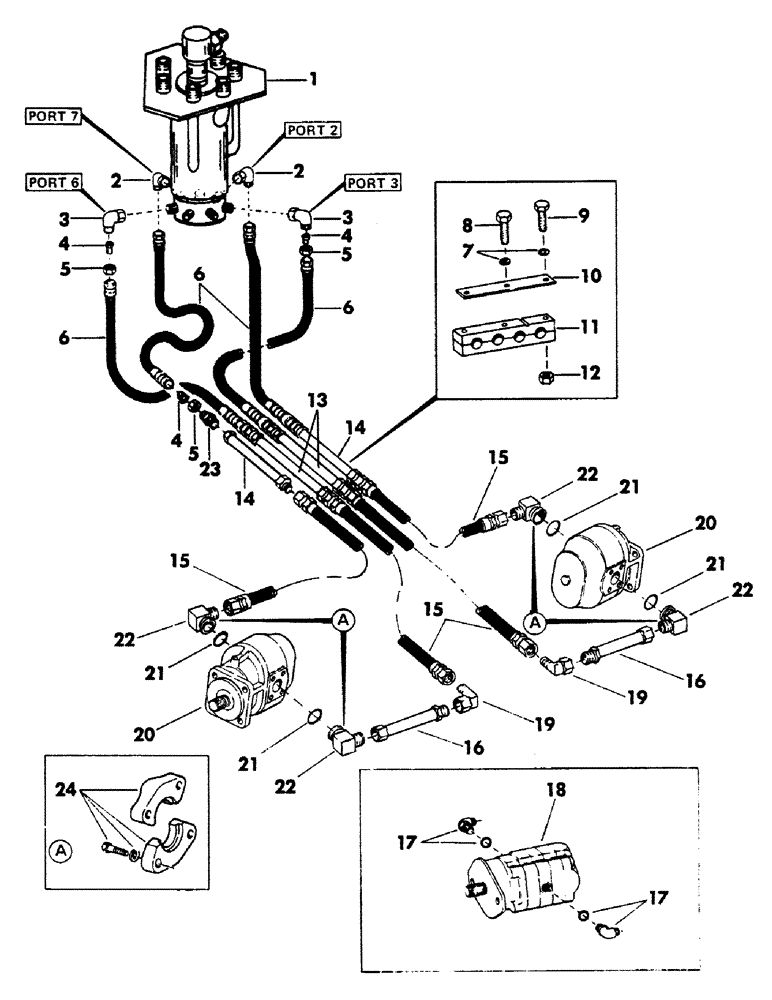

Запчасти Case 40BLC (188) - LOWER TRACK DRIVE MOTOR HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 450 THRU 6275248) (07) - HYDRAULIC SYSTEM

1

SWIVEL - 7 port hydraulic - (For breakdown, see page 224)

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

90 degree swivel - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female 37 degree flared

1шт.

4

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" x 3/4" tube reduction) - 1-1/16" - 12 male - 37 degree flared

1шт.

5

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, tube - (1" tube) - 1-5/16" - 12 female - 37 degree flared

1шт.

6

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

9

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

CPSW - 1/2" NC x 4-1/4" gr 5 - (Used on Wide Gauge Track units only)

1шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

(Used on Standard Gauge Track units only) Hex, 1/2"-13 x 4 1/2", G5

1шт.

10

S79724

BAR

1шт.

11

S209695

BLOCK

wood - (Used on Standard Gauge Track units only)

1шт.

S211615

BLOCK, wood - (Used on Wide Gauge Track units only)

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

S211618

LINE, hydraulic - (Used on Wide Gauge Track units only) 1.25" OD x 23" L

2шт.

14

S211617

LINE, hydraulic - (Used on Wide Gauge Track units only) 1.25" OD x 18.65" L

2шт.

15

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

16

S211648

LINE, hydraulic - (Used on Wide Gauge Track units only) 1" OD x 6" L

2шт.

17

S7952

ELBOW

90 degree adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/8" - 12 male - 37 degree flared - (Includes "o" ring) - (Used on units with serial number 450 thru 882)

2шт.

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

2шт.

18

MOTOR, track drive - (For breakdown, see page 232) - (Used on units with serial number 450 thru 882)

2шт.

19

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared - (Used on units with serial number 883 and after)

1шт.

20

MOTOR, track drive - (For breakdown, see page 236) - (Used on units with serial number 883 and after)

2шт.

21

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD - (Used on units with serial number 883 and after)

4шт.

Change in listing

1шт.

22

S225570

LINE, hydraulic - (Used on units with serial number 883 and after) 1.25" OD

4шт.

23

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Used on Standard Gauge Track units only)

4шт.

24

A14157

FLANGE

split

8шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.
