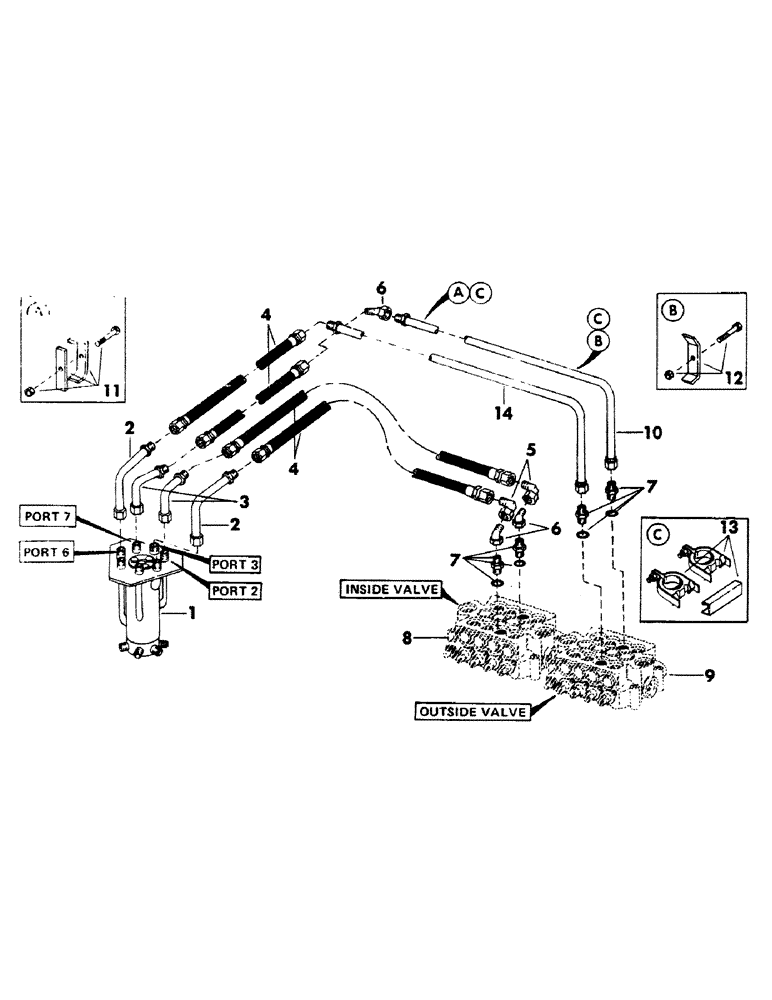

Запчасти Case 40BLC (187) - UPPER TRACK DRIVE MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

SWIVEL, 7-port hydraulic - (For breakdown, see page 224)

1шт.

2

S208826

TUBE,1" OD x 6.12, 4.35" L

LINE, hydraulic

2шт.

3

S208825

TUBE,1" OD x 3.83, 4.3" L

LINE, hydraulic

2шт.

4

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

6

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

7

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "o" ring)

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - .924" ID x 1.156" OD

1шт.

8

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.

9

VALVE, 3-spool main control - (For breakdown, see page 260)

1шт.

10

S502092

TUBE,1.25" OD x 27, 12.1" L

LINE, hydraulic

1шт.

11

S46397

CLAMP

tube - (Used on units with serial number 450 thru 759)

1шт.

S78360

BLOCK, spacer

1шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

12

S43859

CLAMP, tube - (Used on units with serial number 450 thru 759)

1шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

CPSW - 1/2" NC x 2-1/2" gr 5

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

13

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

4шт.

S91603

CHANNEL

- (Mounts clamps)

2шт.

S98413

SUPPORT

CHANNEL - (Mounts clamps)

2шт.

Change in listing

1шт.

14

S502091

LINE - hydraulic 1.25" OD x 44.38, 13.6" L

1шт.

Added listing

1шт.
