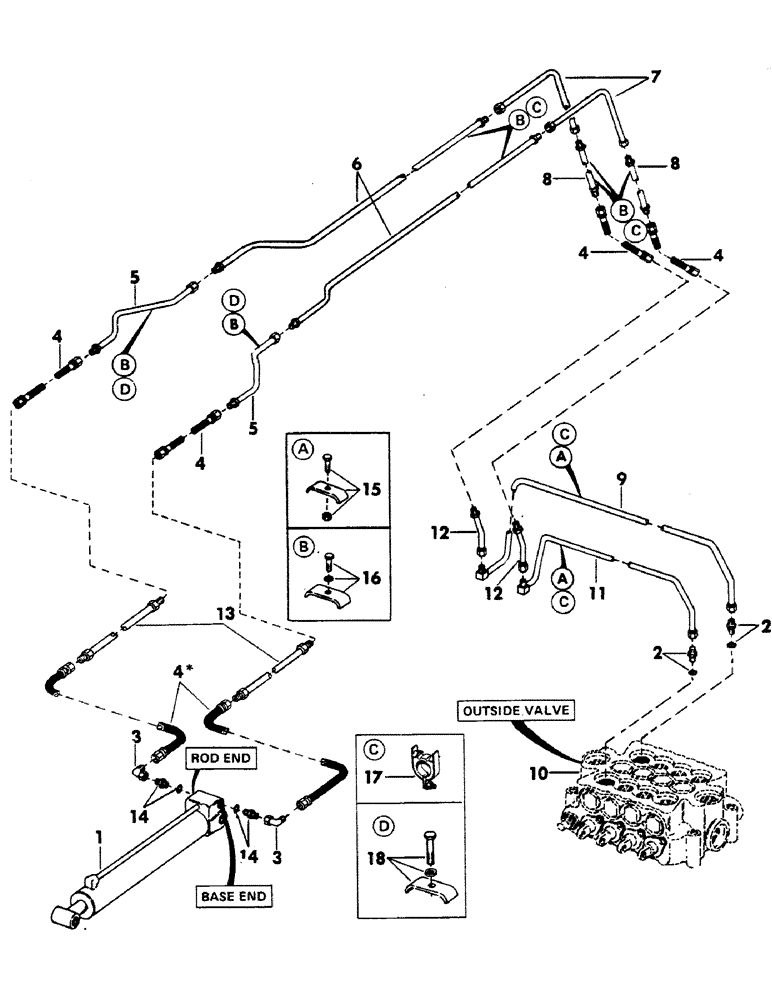

Запчасти Case 40BLC (184) - TOOL CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

CYLINDER, tool - (For breakdown, see page 210) - (Used with 16" and 20" Feller Buncher)

1шт.

CYLINDER, tool - (For breakdown, see pages 202 thru 208) - (Used with 24" Feller Buncher)

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) 1-5/16" - 12 male x 1-5/16" - female - 37 degree flared

2шт.

4

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

6шт.

5

S211907

TUBE ASSY.,1.25" OD x 20, 5.75" L

LINE, hydraulic

2шт.

6

S502566

TUBE,1.25" OD x 58, 3.26" L

LINE, hydraulic

2шт.

7

S501696

TUBE ASSY.,1.25" OD x 13.92, 7.55" L

LINE, hydraulic

2шт.

8

S211941

TUBE ASSY.,1.25" OD x 63" L

LINE, hydraulic

2шт.

9

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

10

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

11

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

12

S211849

LINE,1.25" OD

hydraulic

2шт.

13

S214936

TUBE ASSY.,1.25" OD x 31.04" L

LINE, hydraulic

2шт.

14

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "O" ring) - (Used with 24" Feller Buncher)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

S7973

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-1/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "o" ring) - (Used with 16" and 20" Feller Buncher)

2шт.

S6065

RING

"O" RING - .924" ID x 1.156" OD

2шт.

15

S46397

CLAMP

tube - (Used on units with serial number 450 thru 759)

8шт.

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

16

S46397

CLAMP

tube - (Used on units with serial number 450 thru 759)

8шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

8шт.

18

S46397

CLAMP

tube - (Used on units with serial number 760 and after)

2шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
