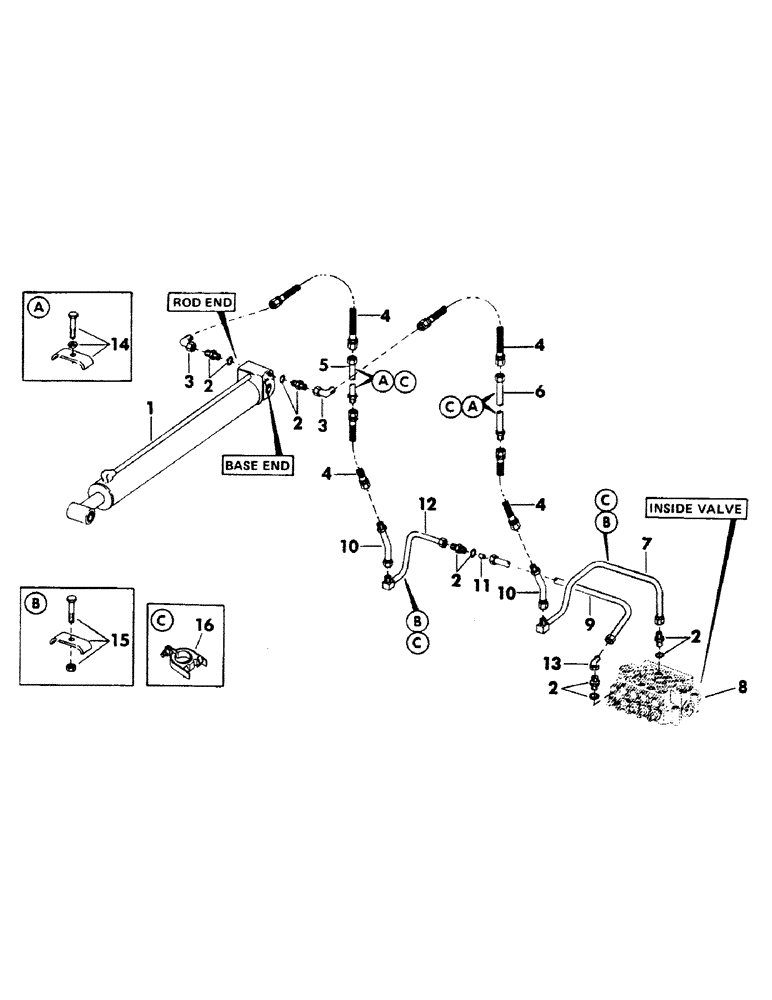

Запчасти Case 40BLC (183) - CROWD CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

CYLINDER, crowd - (For breakdown, see pages 202 thru 208)

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared (Includes "o" ring)

5шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

5шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" 12 fenake - 37 degree flared

2шт.

4

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

5

S502409

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.

6

S506420

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.

7

S502079

TURBINE,1.25" OD

LINE, hydraulic

1шт.

8

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.

9

S502078

TUBE ASSY.,1.25" OD x 9.1, 19" L

LINE, hydraulic

1шт.

10

S211849

LINE,1.25" OD

hydraulic

2шт.

11

S79252

REGULATOR

oil flow

1шт.

12

S502109

LINE,1.25" OD

hydraulic

1шт.

13

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

1шт.

14

S46397

CLAMP

tube - (Used on units with serial number 450 thru 759)

4шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

CPSW - 1/2" NC x 1-1/4" gr 5

4шт.

193-23

LOCK WASHER,Int Tooth, #5

WASHER, lock - 1/2"

4шт.

15

S46397

CLAMP

tube - (Used on units with serial number 450 thru 759)

2шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

16

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

2шт.
