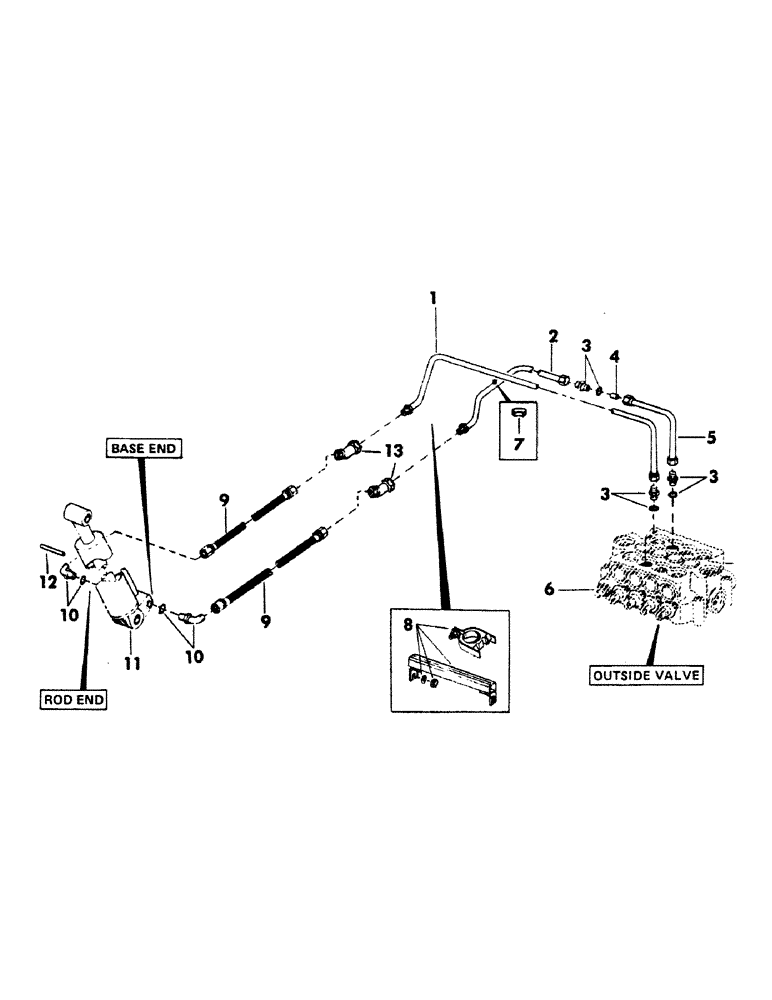

Запчасти Case 40BLC (182) - HOIST CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S502083

LINE

hydraulic

1шт.

2

S506138

TUBE ASSY.,0.625" OD x 11, 3.25" L

LINE, hydraulic

1шт.

3

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "o" ring)

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

3шт.

4

S79252

REGULATOR

oil flow

1шт.

5

S502084

TUBE,1.25" OD

LINE, hydraulic

1шт.

6

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

- 1-5/16" - 12 female - 37 degree flared

1шт.

8

S226021

BRACKET, valve mounting - (Used on units with serial number 760 and after)

1шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

2шт.

9

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

10

S7943

ELBOW

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared- (Includes "o" ring) - (Used on standard units)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

S209354

PIVOT

SWIVEL, hydraulic - (Used on units with heavy lift attachment) - (For breakdown, see page 184) - (Not illustrated)

2шт.

11

CYLINDER, hoist - (For breakdown, see pages 202 thru 208)

1шт.

12

S211829

ROD - (Acts as stop for hose)

1шт.

13

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.
