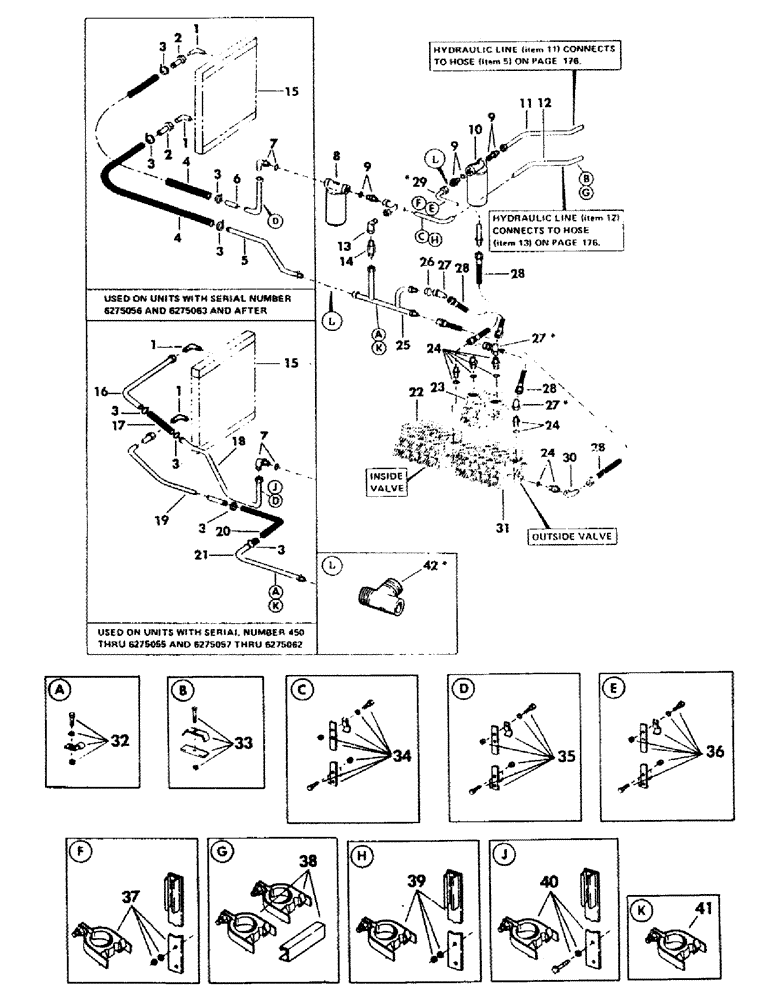

Запчасти Case 40BLC (178) - MAIN VALVE TO RESERVOIR AND COOLER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

90 degrees - (1" tube) - 1" NPT male x 1-5/16" - 12 male - 37 degree flared

2шт.

2

S208126

TUBE ASSY.

LINE, hydraulic

2шт.

3

214-371

CLAMP,1.56"-1.81", T-Bolt

hose

4шт.

4

S202865

HOSE, low pressure - (Bulk) - 2 pieces - 1-1/4" ID x 40" long

1шт.

5

S233923

LINE, hydraulic - (Supersedes S229385) 1.25" OD x 11.34, 4.54" L

1шт.

Change in listing

1шт.

6

S229834

LINE, hydraulic

1шт.

7

S7945

ELBOW

90 degree adjustable - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degree flared - (Includes "o" ring)

1шт.

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

1шт.

9

S7976

CONNECTOR, ELEC

CONNECTOR - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degree flared (Includes "o" ring)

3шт.

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

3шт.

10

S209408

FILTER

hydraulic oil - (For breakdown, see page 240)

1шт.

11

S505851

LINE, hydraulic 1.25" OD

1шт.

12

S506419

LINE, hydraulic

1шт.

13

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

90 degree swivel - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 female - 37 degree flared

1шт.

14

S209396

VALVE

check

1шт.

15

COOLER, oil - (See item 8 on page 54 or item 19 on page 56)

1шт.

16

S219943

LINE, hydraulic 1.25" OD x 6, 16.3" L

1шт.

17

S202582

LINE

HOSE, low pressure - (Bulk) - 1 piece - 1-1/4" ID x 18" long - (Used on units with Detroit Diesel 4-71 engine)

1шт.

S202582

LINE

HOSE, low pressure - (Bulk) - 1 piece - 1-1/4" ID x 21" long - (Used on units with Case 504BD diesel engines)

1шт.

18

S219803

LINE, hydraulic 1.25" OD

1шт.

19

S219942

TUBE,1.25" OD x 20, 5" L

LINE, hydraulic

1шт.

20

S202582

LINE

HOSE, low pressure - (Bulk) - 1 piece - 1-1/4" ID x 25" long

1шт.

21

S208827

LINE, hydraulic 1.25" OD x 25, 6" L

1шт.

22

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.

23

VALVE, 1-spool main control - (For breakdown, see page 256)

1шт.

24

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared (Includes "o" ring)

5шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

5шт.

25

S219883

TUBE,20, 3.38" L

LINE, hydraulic

1шт.

26

218-758

CAP,37 Degree, 1 5/16"-12

- 1-5/16" - 12 female - (Used on units without leveler)

1шт.

27

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

3шт.

Change in listing

1шт.

28

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 pressed on female couplings)

4шт.

29

S220641

LINE, hydraulic

1шт.

30

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" 12 female - 37 degree flared

2шт.

31

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

32

S77469

CLAMP

tube - (Used on units with serial number 450 thru 759)

3шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

195-105

WASHER,7/16"

flat - 1/2"

3шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.

33

S88023

CLAMP, tube - (Used on units with serial number 450 thru 759)

2шт.

S78360

BAR, spacer

2шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

34

S79583

CLAMP

tube - (Used on units with serial number 450 thru 759)

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

195-105

WASHER,7/16"

flat - 1/2"

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

S93270

BRACKET

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

35

S79583

CLAMP

tube - (Used on units with serial number 450 thru 759)

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

195-105

WASHER,7/16"

flat - 1/2"

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

S93271

BRACKET

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

36

S77469

CLAMP

tube - (Used on units with serial number 450 thru 759)

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

195-105

WASHER,7/16"

flat - 1/2"

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

S92524

BRACKET

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

195-105

WASHER,7/16"

flat - 1/2"

2шт.

37

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

1шт.

S225957

BRACKET

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2"

2шт.

38

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

2шт.

S98324

CLAMP

tube

2шт.

S98413

SUPPORT

BRACKET

2шт.

39

S98324

CLAMP

tube - (Used on units with serial number 760 and after)

1шт.

S226010

BRACKET

1шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

CPSW - 1/2" NC x 2" gr 5

2шт.

131-70

NUT,1/2"-13, GB

NUT - 1/2" NC

2шт.

40

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

1шт.

S226000

BRACKET - (Used on units with serial number 450 thru 6275055 and 6275057 thru 6275062) - (Illustrated)

1шт.

S229386

BRACKET - (Used on units with serial number 6275056 and 6275063 and after) (Not illustrated)

1шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

CPSW - 1/2" NC x 1-3/4" gr 5

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

41

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

3шт.

42

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- (1-1/4" tube) - 1-5/8" - 12 female x 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degree flared - (Used only on units with rotary cutter)

1шт.

Added listing

1шт.
