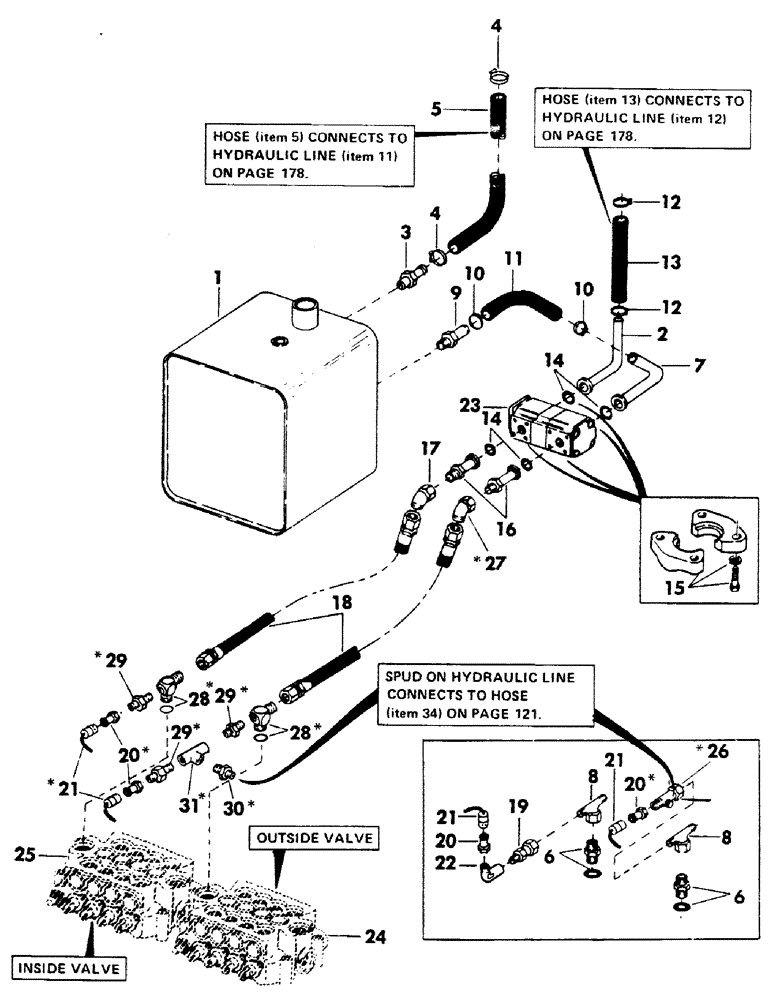

Запчасти Case 40BLC (176) - RESERVOIR TO PUMP MAIN VALVE HYDRAULICS (07) - HYDRAULIC SYSTEM

1

RESERVOIR, hydraulic oil - (For breakdown, see page 230)

1шт.

2

S506271

LINE, hydraulic 1.5" OD x 4.75, 7.88" L

1шт.

3

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

INSERT, hose - 1" - 11-1/2 NPT male - (Fits 1-1/4" ID hose)

1шт.

4

214-371

CLAMP,1.56"-1.81", T-Bolt

hose

2шт.

5

S202582

LINE

HOSE, low pressure (Bulk) 1-1/4" - ID x 38" long - (Used on Detroit Diesel 4-71 engine only)

1шт.

S202852

HOSE, low pressure (Bulk) - 1-1/4" ID x 27" long - (Used on Case 504BD diesel engine only)

1шт.

6

S7972

CONNECTOR, ELEC

ADAPTER - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes item 7)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

7

S227911

LINE

hydraulic - (Used on Detroit Diesel 4-71 engine only) - (Supersedes S220953)

1шт.

S227910

TUBE ASSY.,1.5" OD

LINE, hydraulic - (Used on Case 504BD diesel engine only) - (Supersedes S220967)

1шт.

8

218-838

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

2шт.

Change in listing

1шт.

9

217-163

ADAPTER

INSERT, hose - 2" ID hose x 1" NPT male

2шт.

10

S85430

CLAMP

hose

2шт.

11

S71931

HOSE, low pressure (Bulk) - 2" ID x 10" long - (Used on Detroit Diesel 4-71 engine only)

12шт.

Change in listing

1шт.

S71931

HOSE, low pressure (Bulk) - 2" ID x 19" long - (Used on Case 504BD diesel engine only)

1шт.

12

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

hose

2шт.

13

S28123

HOSE

low pressure (Bulk) 1-1/2" ID x 18" long - (Used on Case 504BD diesel engine only)

1шт.

S28123

HOSE

low pressure (Bulk) - 1-1/2" ID X 20" long - (Used on Detroit Diesel 4-71 engine only)

1шт.

14

S5815

O-RING,1.49" ID x 1.75" OD x 0.143"

"O" RING - 1.484" ID x 1.750" OD

4шт.

15

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

CLAMP, split flange - (Supersedes S10864)

8шт.

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" gr 5

16шт.

16

S63640

ADAPTER

LINE, hydraulic - (Supersedes S220517)

2шт.

Change in listing

1шт.

17

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared (Used on Case 504BD diesel engine only)

1шт.

18

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

19

S220520

TUBE,1" OD x 4.5" L

LINE, hydraulic

1шт.

20

S206607

DISC

ONNECT, quick

2шт.

21

S206608

CAP

dust

2шт.

22

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

23

PUMP, main hydraulic - (For breakdown, see page 226)

1шт.

24

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

25

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.

26

217-1161

TEE,1/4"-18 Female

1шт.

27

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" 12 female - 37 degree flared - (Used with Case 504BD diesel engine only)

1шт.

Added listing

1шт.

28

S113093

ELBOW

90 degrees (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 male 37 degree flared

2шт.

Added listing

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

2шт.

29

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

3шт.

Added listing

1шт.

30

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPTF male - 37 degree flared

1шт.

Added listing

1шт.

31

217-1161

TEE,1/4"-18 Female

- (1/4" pipe) - 1/4" NPTF female x 1/4" NPTF female x 1/4" NPTF female

1шт.

Added listing

1шт.
