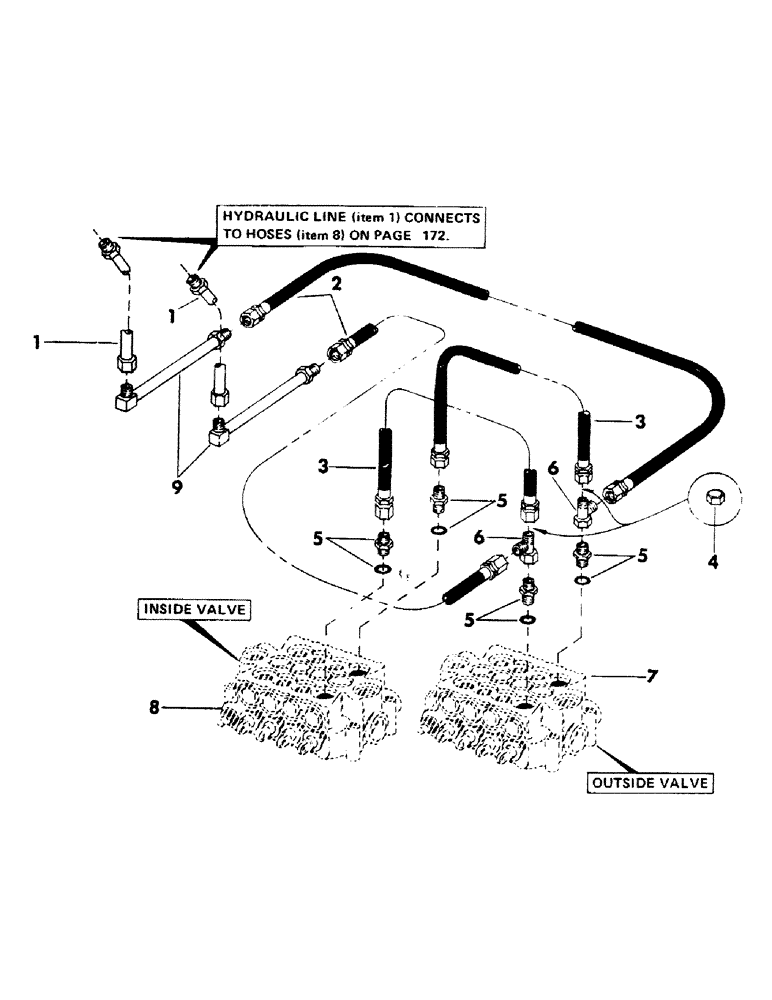

Запчасти Case 40BLC (174) - AUXILIARY HYDRAULICS FOR FELLER BUNCHER (07) - HYDRAULIC SYSTEM

1

S211849

LINE,1.25" OD

hydraulic

2шт.

2

S87253

HOSE

high pressure - 1" ID x 58" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

3

S8628

HOSE

high pressure - 1" ID x 36" long - (1-5/16" - 12 female pressed on couplings (Used with 20" and 24" Feller Buncher)

2шт.

4

218-758

CAP,37 Degree, 1 5/16"-12

- 1-5/16 - 12 female - (Used with 16" Feller Buncher)

2шт.

5

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) -1-5/16" - 12 male x 1-5/16" - 12 male 37 degree flared (Includes "o" ring)

4шт.

6

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male x 1-5/16 - 12 female - 37 degree flared

1шт.

7

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

8

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.

9

S217642

LINE, hydraulic 1.25" OD x 5.62" L

2шт.
