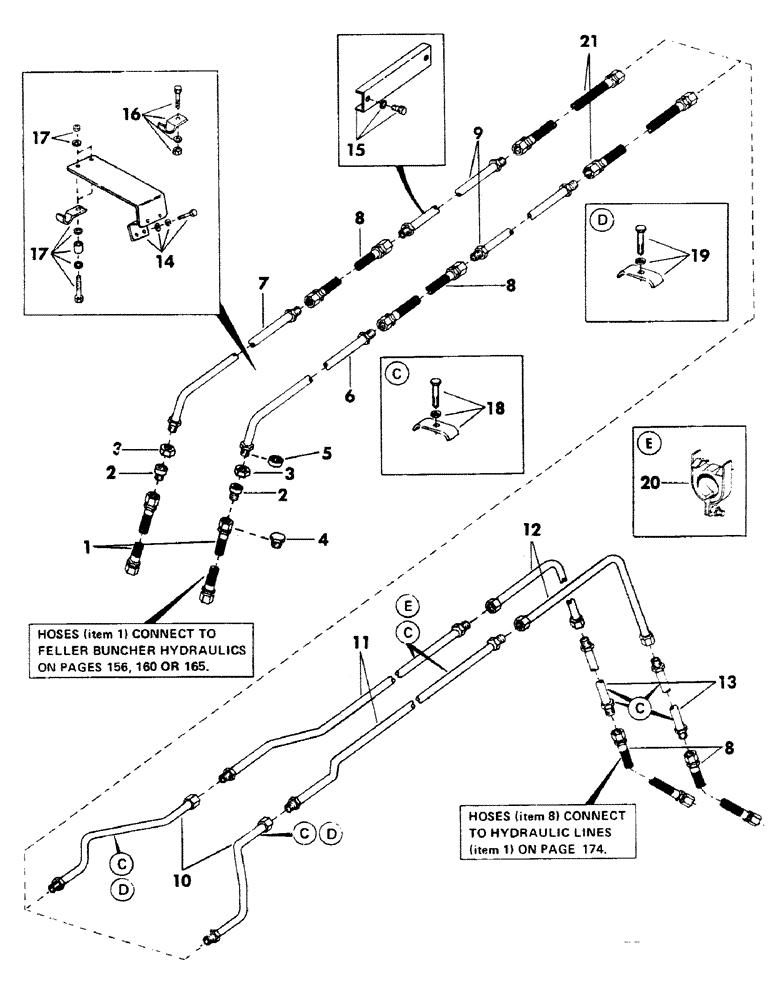

Запчасти Case 40BLC (172) - AUXILIARY BOOM HYDRAULICS FOR FELLER BUNCHER (07) - HYDRAULIC SYSTEM

1

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings) - (Used with 16" Feller Buncher)

2шт.

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings) - (Used with 20" and 24" Feller Buncher)

2шт.

2

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" x 3/4" tube reduction) - 1-1/16" - 12 male - 37 degree flared - (Used with 16" Feller Buncher)

2шт.

3

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, tube - (1" tube) - 1-5/16" - 12 female - 37 degree flared - (Used with 16" Feller Buncher)

2шт.

4

218-779

PLUG,1 5/16"-12, 37 Degree

- (1" tube) - 1-5/16" - 12 male - 37 degree flared

2шт.

5

218-759

CAP,37 Degree, 1 5/8"-12

- (1" tube) - 1-5/16" - 12 female - 37 degree flared

2шт.

6

S217817

LINE, hydraulic - (Used with 16" Feller Buncher) 1.25" OD

1шт.

S225899

TUBE ASSY.,1.25" OD

LINE, hydraulic - (Used with 20" and 24" Feller Buncher when square head cylinder is used)

1шт.

7

S217816

LINE, hydraulic - (Used with 16" Feller Buncher) 1.25" OD

1шт.

S225898

TUBE ASSY.,1.25" OD

LINE, hydraulic - (Used with 20" and 24" Feller Buncher when square head cylinder is used)

1шт.

8

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

9

S229653

LINE, hydraulic 1.25" OD x 82" L

2шт.

10

S211907

TUBE ASSY.,1.25" OD x 20, 5.75" L

LINE, hydraulic

2шт.

11

S502566

TUBE,1.25" OD x 58, 3.26" L

LINE, hydraulic

2шт.

12

S501696

TUBE ASSY.,1.25" OD x 13.92, 7.55" L

LINE, hydraulic

2шт.

13

S211941

TUBE ASSY.,1.25" OD x 63" L

LINE, hydraulic

2шт.

14

S506883

GUARD, boom

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Mounts guard to boom) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

WASHER, flat - 1/2"

2шт.

15

S89414

CHANNEL

GUARD

2шт.

113-240

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

CPSW - 1/2" NC x 2" gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

S77469

CLAMP

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

195-530

WASHER,7/16"

flat - 1/2"

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

17

S77469

CLAMP

2шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

CPSW - 1/2" NC x 2-1/2" gr 5

2шт.

S106334

SPACER,1/2" Pipe x 1"

2шт.

195-530

WASHER,7/16"

flat - 1/2"

6шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

18

S46397

CLAMP

tube - (Used on units with serial number 450 thru 759)

8шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

19

S46397

CLAMP

WASHER, lock - 1/2"

8шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

S93266

CLAMP

tube - (Used on units with serial number 760 and after)

2шт.

21

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.
