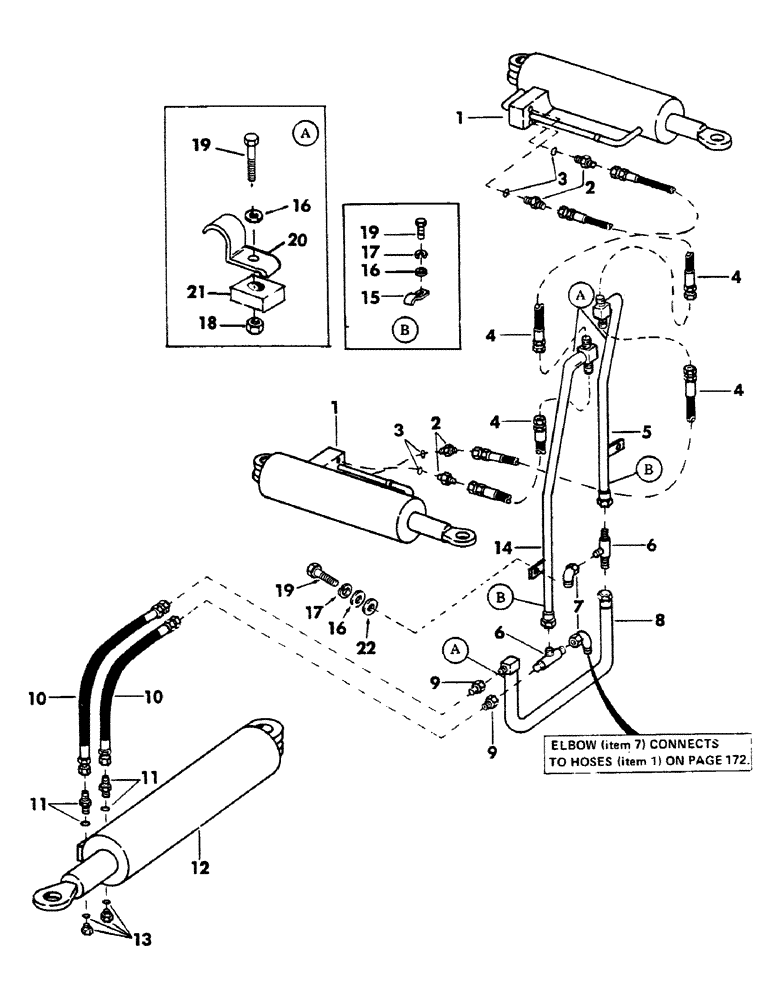

Запчасти Case 40BLC (160) - 20" FELLER BUNCHER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

CYLINDER, grab arm - (For breakdown, see page 218)

2шт.

2

S7967

CONNECTOR, ELEC

CONNECTOR - (5/8" tube) - 1-1/16" - 12 male x 7/8" - 14 male - 37 degree flared - (Includes item 3)

4шт.

3

S6065

RING

"O" RING - .924" ID x 1.156" OD

4шт.

4

S8581

HOSE ASSY.

HOSE, high pressure - 1/2" ID x 48" long - (With 1-1/16" - 12 female pressed on couplings)

4шт.

5

S219713

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male x 1-5/16" - 12 male 37 degree flared

2шт.

7

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

8

S217848

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.

9

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducer - (1" x 3/4" tube reduction) - 1-1/16" - 12 male - 37 degree flared

2шт.

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 male - 37 degree flared

2шт.

10

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on coupling)

2шт.

11

S7969

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) - 1-5/16" - 12 male x 1-1/16" - 12 male - 37 degree flared (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

12

CYLINDER, shear arm - (For breakdown, see page 212)

1шт.

13

S8985

PLUG

- (1" tube) - 1-5/16" - 12 male - (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

14

S219712

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.

Change in listing

1шт.

15

S77469

CLAMP

1шт.

16

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2" - (Supersedes S7392)

3шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.

19

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

20

S77324

CLAMP

CLIP, tube

3шт.

Added listing

1шт.

21

S85564

SPACER

3шт.

Added listing

1шт.

22

196-30

WASHER,11/16" x 1 1/2" x .134", HDN

hardened - 5/8"

5шт.
