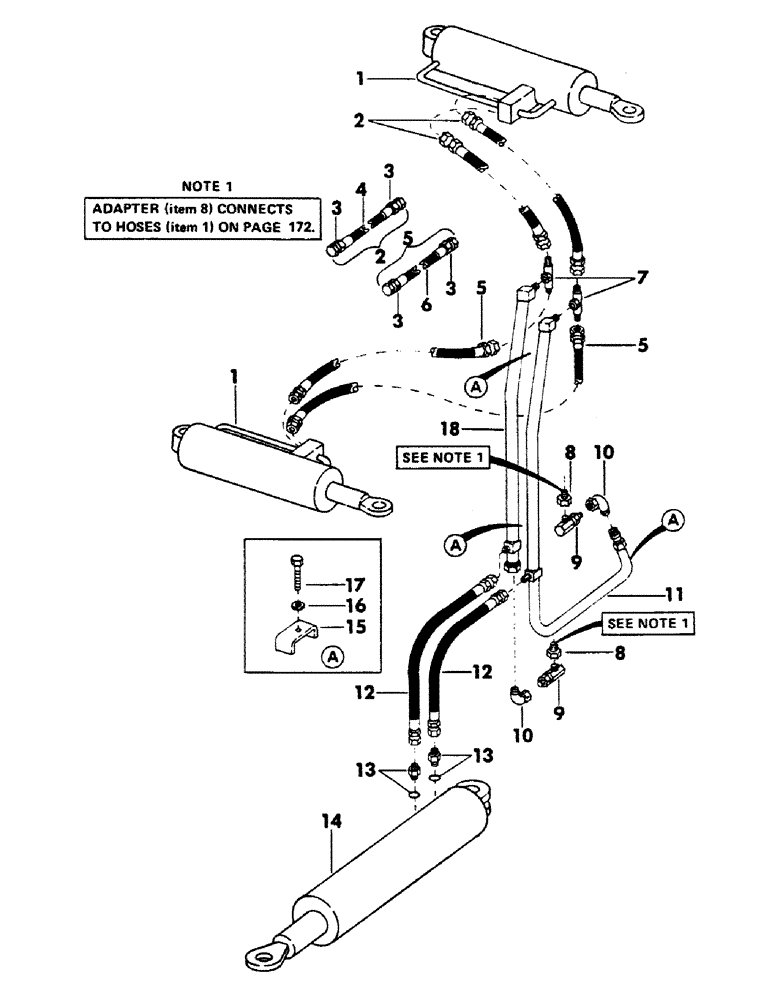

Запчасти Case 40BLC (156) - 16" FELLER BUNCHER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

CYLINDER, grab arm - (For breakdown, see page 216)

2шт.

2

S88684

HOSE, high pressure - 3/8" ID x 35" long - (Consists of items 3 and 4)

2шт.

3

220-212

FITTING

COUPLING, reusable - 3/4" - 16 female - 37 degree flared

8шт.

4

S28465

HOSE

high pressure (Bulk) - 2 pieces - 3/8" ID x 33" long

1шт.

5

S76788

HOSE

0.38" ID x 32.00", High Pressure, Consists of Items 3 and 6

2шт.

6

S28465

HOSE

high pressure (Bulk) - 2 pieces - 3/8" ID x 30" long

1шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

2шт.

8

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female - 37 degree flared

2шт.

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" x 3/4" tube reduction) - 1-1/16" - 12 male

2шт.

9

SWIVEL, hydraulic line - (For breakdown, see page 242)

2шт.

10

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

11

S502269

LINE, hydraulic 1" OD

1шт.

12

S15468

HOSE

high pressure - 3/4" ID x 28" long (With 1-1/16" - 12 female pressed on couplings)

2шт.

13

S7969

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) 1-5/16" - 12 male x 1-1/16" - 12 male - 37 degree flared (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

14

CYLINDER, shear arm - (For breakdown, see page 211)

1шт.

15

S46397

CLAMP

tube

3шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

17

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

18

S502270

LINE, hydraulic 1" OD x 4.8, 34.58" L

1шт.
