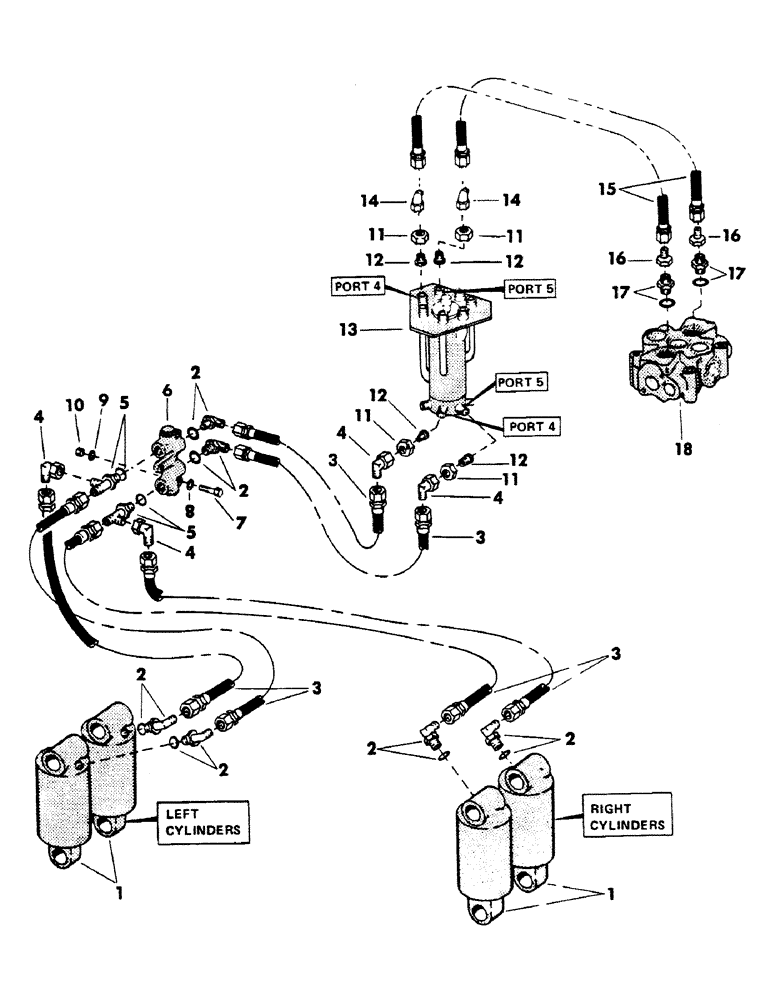

Запчасти Case 40BLC (152) - LEVELER HYDRAULICS, (USED WITH WIDE GAUGE TRACK UNITS)(USED ON UNITS WITH SN. 643 AND AFTER) (07) - HYDRAULIC SYSTEM

1

CYLINDER, leveler - (For breakdown, see page 223)

4шт.

2

S7939

ELBOW

90 degree adjustable - (1/2" tube) - 3/4" - 16 male - 37 degree flared - (Includes "o" ring)

6шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

6шт.

3

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

6шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

4шт.

5

S60865

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Includes "o" ring)

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

6

VALVE, leveler check - (For breakdown, see page 245)

1шт.

7

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

8

195-102

WASHER,1/4"

flat - 1/4"

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 1/4" NC

2шт.

11

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, tube - (3/4" tube) - 1-1/16" - 12 female - 37 degree flared

4шт.

12

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducer - (3/4" to 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

2шт.

13

SWIVEL, 7-port hydraulic - (For breakdown, see page 224)

1шт.

14

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

2шт.

15

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

16

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER, reducer - (5/8" to 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

2шт.

17

S7985

CONNECTOR, ELEC

CONNECTOR - (5/8" tube) - 1-5/16" - 12 male x 7/8" - 14 male - 37 degree flared - (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

18

VALVE, 1-spool main control - (For breakdown, see page 256)

1шт.
