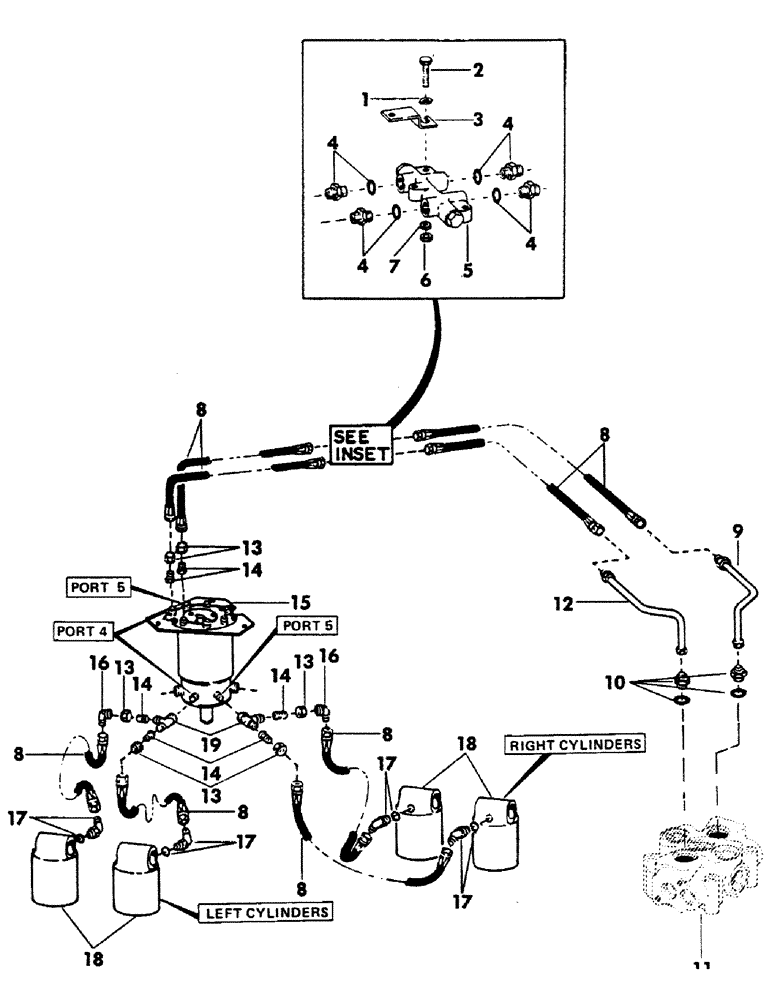

Запчасти Case 40BLC (150) - LEVELER HYDRAULICS, (USED WITH WIDE GAUGE TRACK UNITS)(USED ON UNITS WITH SN. 450 THRU 642) (07) - HYDRAULIC SYSTEM

1

195-105

WASHER,7/16"

flat - 5/16"

2шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

3

S69624

BRACKET, valve mounting

2шт.

4

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Includes "o" ring)

4шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

8шт.

5

VALVE, check - (For breakdown, see page 245)

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

A19708

HOSE, high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

8шт.

9

S506097

LINE, hydraulic 0.625" OD x 11, 3.25" L

1шт.

10

S7985

CONNECTOR, ELEC

CONNECTOR - (5/8" tube) - 1-5/16" - 12 male x 7/8" - 14 male - 37 degree flared (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

11

VALVE, 1-spool main control - (For breakdown, see page 256)

1шт.

12

S506096

LINE, hydraulic 0.625" OD x 7, 3.25" L

1шт.

13

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - (3/4" tube) - 1-1/16" - 12 female - 37 degree flared

6шт.

14

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducing - (3/4" x 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

6шт.

15

SWIVEL, 7-port hydraulic - (For breakdown, see page 224)

1шт.

16

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

2шт.

17

S7939

ELBOW

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Includes "o" ring)

4шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

4шт.

18

CYLINDER, leveler - (For breakdown, see page 223)

4шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female x 3/4" - 16 male - 37 degree flared

2шт.
