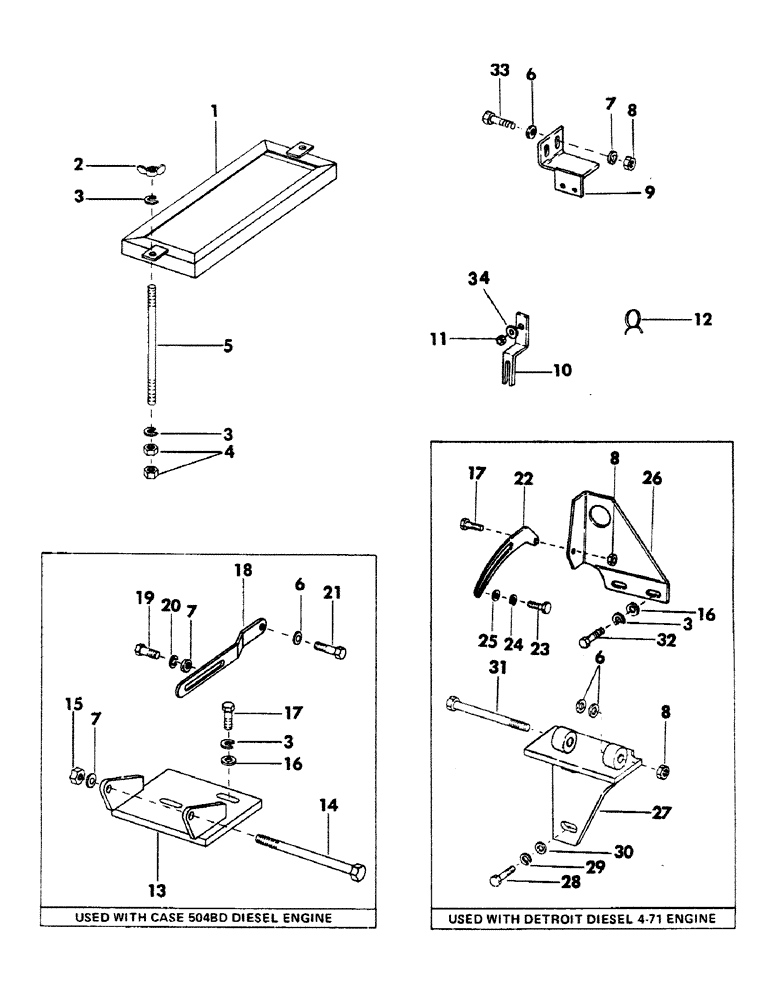

Запчасти Case 40BLC (278) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE (06) - ELECTRICAL SYSTEMS

1

S202780

BRACKET

battery hold down

2шт.

2

S77941

NUT, wing - 3/8" NC

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

5

S78386

STUD

ROD

4шт.

6

195-525

WASHER,3/8", SAE

flat - 3/8"

1шт.

7

195-33

WASHER,1/2"

flat - 1/2"

1шт.

8

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

9

S219384

BRACKET, micro switch mounting - (Brake warning system)

1шт.

10

S93331

BRACKET, micro switch mounting - (Brake warning system)

1шт.

11

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4"

1шт.

12

214-108

CLIP,#13, 13/16", Spring

CLAMP

1шт.

13

S505695

BRACKET, alternator mounting

1шт.

14

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

15

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

16

195-103

WASHER,5/16"

flat - 3/8"

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

S219335

BRACKET

alternator adjusting

1шт.

19

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Adjusting bracket to engine Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

22

S200898

STRAP

BRACKET, alternator adjusting

1шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

25

195-521

WASHER,5/16", SAE

flat - 11/32"

2шт.

26

S211847

BRACKET, alternator left

1шт.

27

S225592

BRACKET, alternator mounting

1шт.

28

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

30

195-104

WASHER,3/8"

flat - 7/16"

2шт.

31

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

CPSW - 3/8" NC x 3-3/8" gr 5

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

33

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

1шт.

34

195-101

WASHER,3/16"

flat - 1/4"

1шт.
