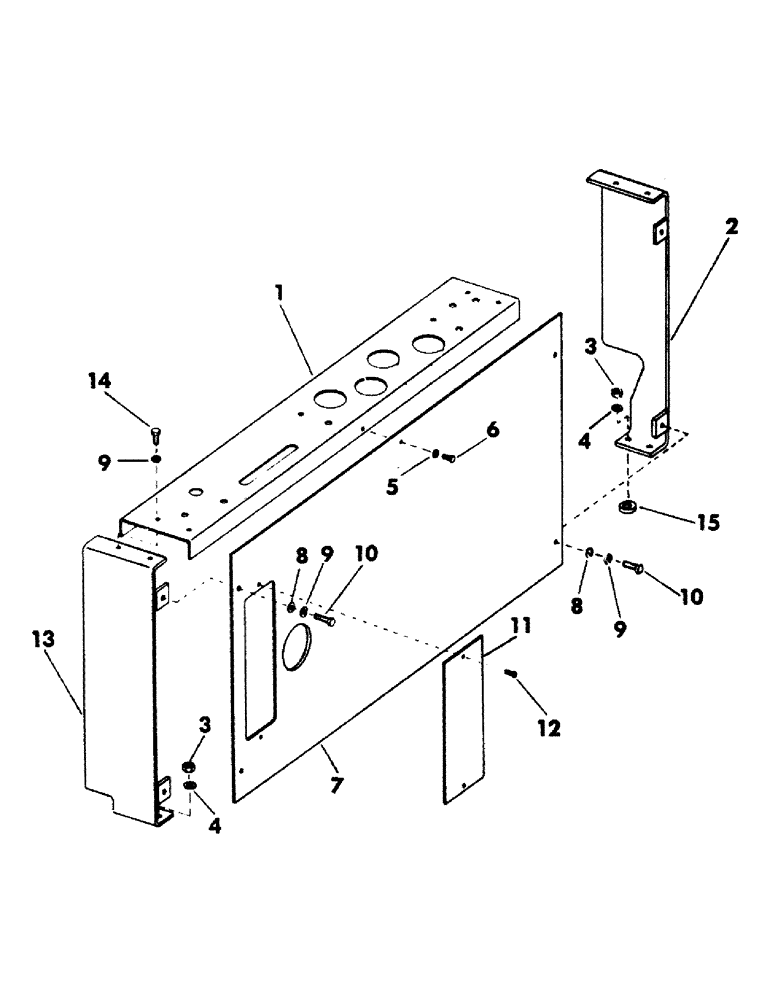

Запчасти Case 40BLC (277) - INSTRUMENT PANEL AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

1

S603457M1

PANEL, instrument

1шт.

2

S505704

BRACKET

1шт.

S68002

GROMMET,7/16" ID x 11/16" Groove Dia

rubber - (Not illustrated)

1шт.

3

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

4

195-103

WASHER,5/16"

flat - 3/8"

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

6

131-1

LOCK NUT,1/4"-28, GB

CPSW - 1/4" NC x 1/2" gr 5

1шт.

7

S505708

PANEL, side

1шт.

8

195-518

WASHER,1/4", SAE

flat - 1/4"

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

S92342

DOOR, fuse box

1шт.

12

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, self tapping - no. 10 NC x 3/8"

2шт.

13

S505706

BRACKET

1шт.

14

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

195-105

WASHER,7/16"

flat - 1/2" - (Used as shim for back holes only)

2шт.
