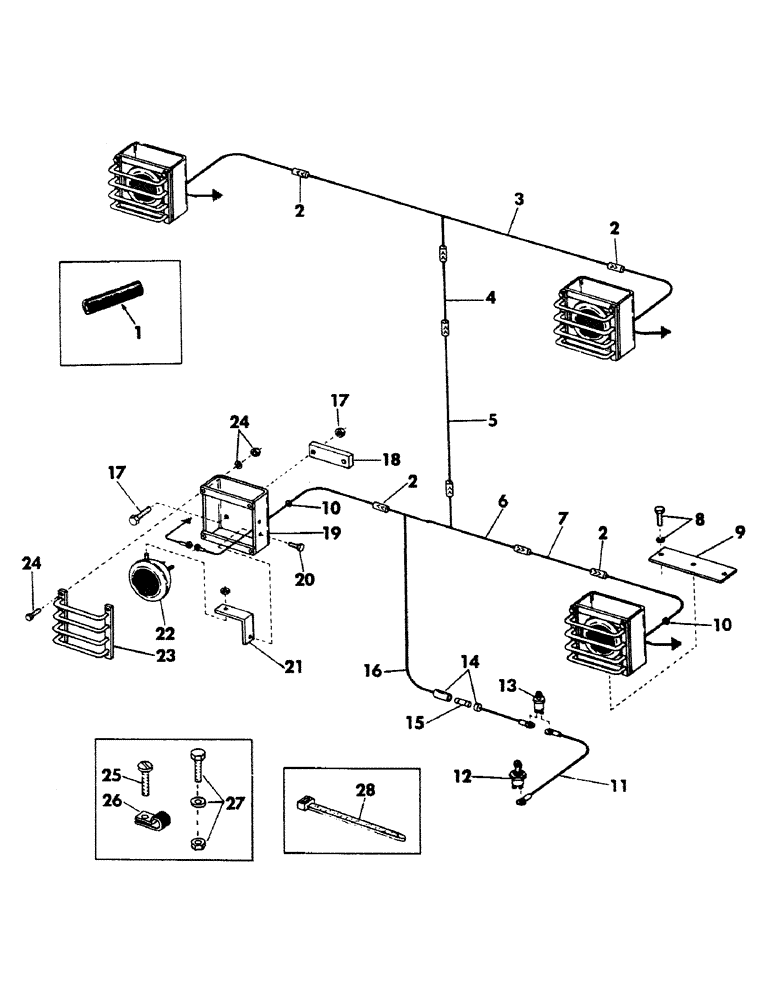

Запчасти Case 40BLC (274) - WORKLIGHTS AND GUARDS WITH ELECTRICAL (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
S62256
LOOM
(145")
1шт.
2
223-191
TERMINAL CONNECTOR,14 - 16
PLUG, terminal
4шт.
3
S221234
WIRE ASSEMBLY - (Boom lights)
1шт.
4
S222055
WIRE, jumper - 14 gauge x 25" long - (Used with optional 30" hi-rise for cab)
2шт.
5
S208710
WIRE, jumper - 14 gauge x 58" long
1шт.
6
S222057
WIRE ASSEMBLY - (Cab lights)
1шт.
7
S222056
WIRE, jumper - 14 gauge x 105" long
1шт.
8
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
9
S94122
BAR - (With cab lights)
1шт.
10
S79350
GROMMET,3/16" ID x 5/16" Groove Dia
2шт.
11
S221241
WIRE ASSEMBLY - 14 gauge x 25" long
1шт.
12
S76366
SWITCH
ignition
1шт.
13
S16866
SWITCH
light
1шт.
14
S16869
HOLDER
fuse
1шт.
15
S66917
FUSE
15 amp
1шт.
16
S209089
HARNESS
WIRE ASSEMBLY - 14 gauge x 8" long - (Includes items 14 and 15)
1шт.
17
80087972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
CPSW - 1/2" NC x 2-1/2" gr 5
2шт.
S17086
NUT
self locking - 1/2" NC
2шт.
18
S86493
SPACER
- (With turntable light)
1шт.
19
S212579
GUARD
lamp housing
2шт.
20
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
21
S222287
BRACKET
ASSEMBLY
4шт.
22
S203058
LIGHT
LAMP
4шт.
23
S212578
PROTECTOR
GUARD LAMP
4шт.
24
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
16шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
20шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
16шт.
25
187-1507
SELF-TAP SCREW,Hex Hd, #10 x 3/8"
SCREW, self tapping
10шт.
26
A62209
CLAMP,5/16", Insul, 1/4" Bolt
- (Wire and loom to upper cab)
1шт.
S77479
CLAMP,1/8", Insul, 1/4" Bolt
- (Holds wire to cab)
9шт.
S64985
CLAMP
- (With boom lights)
2шт.
27
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
(with S64985) Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
195-103
WASHER,5/16"
flat - 3/8" - (With S64985)
2шт.
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC - (With S64985)
2шт.
28
S73387
CLIP
CLAMP - (Wire to hydraulic lines)
20шт.
Выбрано товаров: 36
