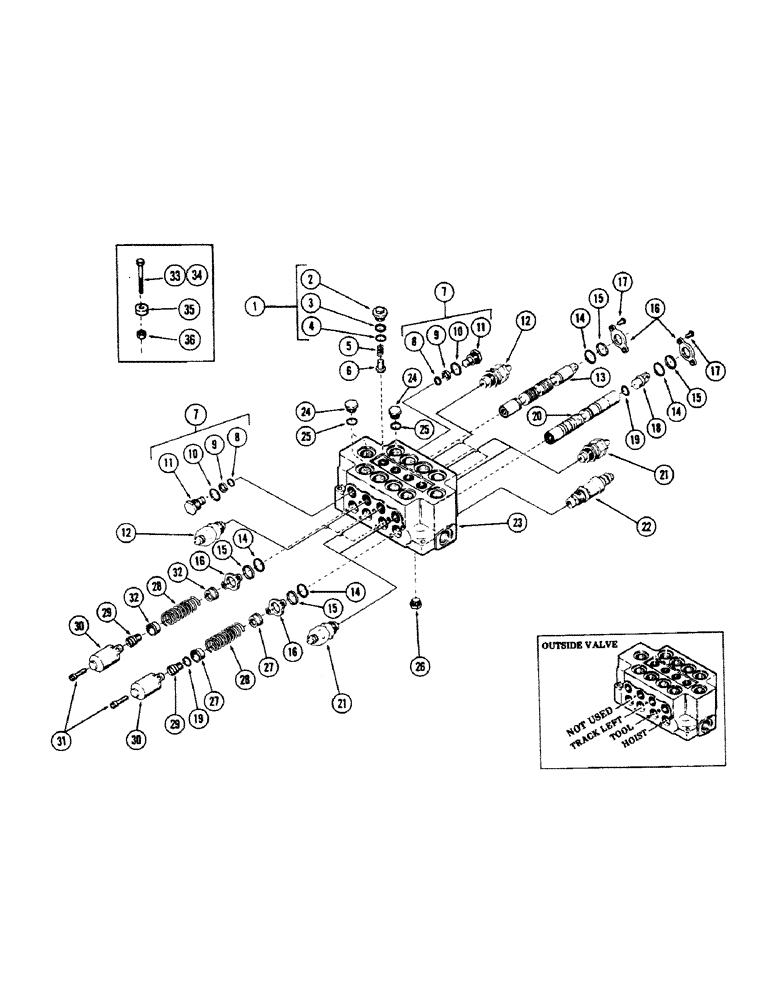

Запчасти Case 40 (236) - 4-SPOOL MAIN CONTROL VALVE, (STANDARD OUTSIDE VALVE) (35) - HYDRAULIC SYSTEMS

S514842

VALVE

4-spool main control (Outside standard valve), Includes: Ref. 1 - 32

1шт.

1

S105062

PLUG

ASSEMBLY, Includes: Ref. 2 - 4

4шт.

2

S105094

PLUG

1шт.

3

S105095

RING

back-up

1шт.

4

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING

1шт.

5

S13715

SPRING

4шт.

6

S13716

VALVE POPPET

POPPET

4шт.

7

S81690

PLUG

port overload, Includes: Ref. 8 - 11

2шт.

8

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - .549" ID x .750" OD

1шт.

9

S93829

BACK-UP RING,0.609" ID x 0.052" Width

back up

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - 1-5/16" NPT male

1шт.

12

REF

INSTRUCTION

CARTRIDGE - port relief - set at 2500 PSI - (For breakdown, see Figure 242)

2шт.

13

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

8шт.

15

S62092

WIPER

8шт.

16

S13829

PLATE

seal

8шт.

17

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

8шт.

18

S62289

END

plunger

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

2шт.

20

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

21

REF

INSTRUCTION

CARTRIDGE, port relief - set at 3200 PSI - (For breakdown, see Figure 242)

4шт.

22

REF

INSTRUCTION

CARTRIDGE, main relief - set at 3000 PSI - (For breakdown, see Figure 240)

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

24

S8985

PLUG

- (1" tube) - 1-5/16" - 12 male, Includes: Ref. 25

2шт.

25

273916

PLUG,Hex, 1-5/16" - 12 ORB

"O" RING - 1.171" ID x 1.403" OD

2шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

PLUG - pipe

2шт.

27

S107817

SEAT

spring

2шт.

28

S109959

SPRING

4шт.

29

S62290

BOLT

4шт.

30

S62278

CAP

plunger

4шт.

31

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" NC x 1" Gr 8 - (Hexagon socket head)

8шт.

32

S62288

SEAT

spring

6шт.

33

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

34

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

35

S113313

SPACER

valve mounting

3шт.

36

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.
