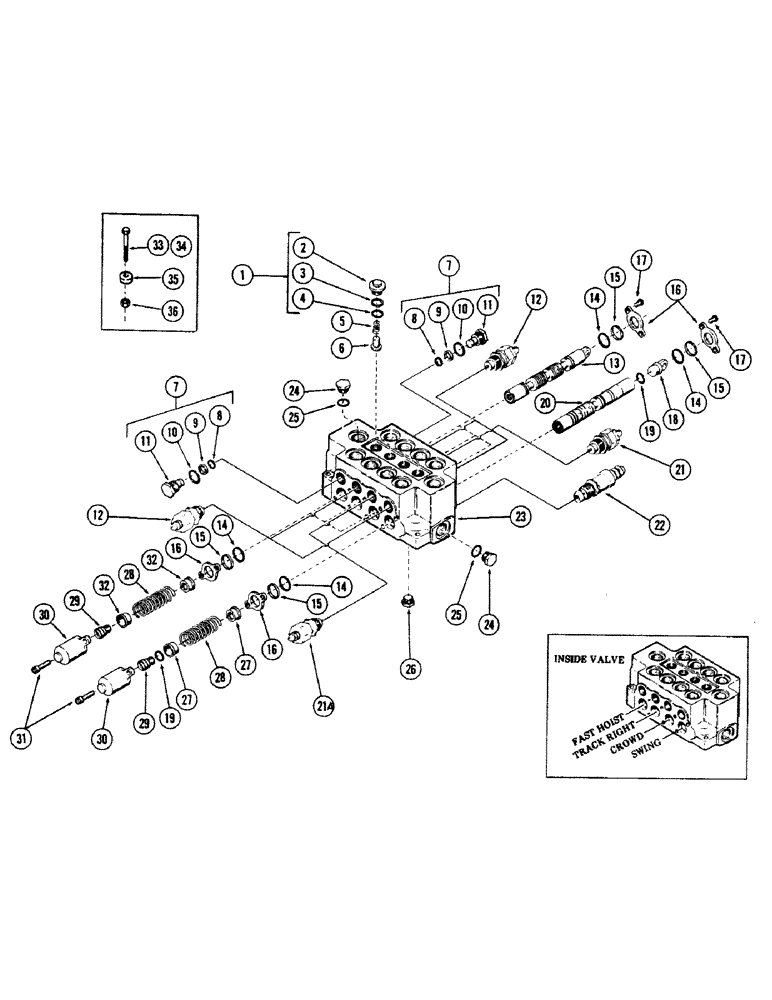

Запчасти Case 40 (234) - 4-SPOOL MAIN CONTROL VALVE, (STANDARD INSIDE VALVE) (35) - HYDRAULIC SYSTEMS

S514710

VALVE - 4-spool main control - used with "Y" boom (See note below)

1шт.

S514841

VALVE

- 4-spool main control - used with "E" boom (See note below)

1шт.

S514710

VALVE - 4-spool main control - used with "Y" boom, Includes: Ref. 1 - 32

1шт.

S514841

VALVE

- 4-spool main control - used with "E" boom, Includes: Ref. 1 - 32

1шт.

1

S105062

PLUG

ASSEMBLY, Includes: Ref. 2 - 4

4шт.

2

S105094

PLUG

1шт.

3

S105095

RING

- back-up

1шт.

4

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1шт.

5

S13715

SPRING

4шт.

6

S13716

VALVE POPPET

POPPET

4шт.

7

S81690

PLUG

- port overload, Includes: Ref. 8 - 11

2шт.

8

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- .549" (13.9 MM) ID x .750" (19.1 MM) OD

1шт.

9

S93829

BACK-UP RING,0.609" ID x 0.052" Width

- back-up

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1.171" (29.7 MM) ID x 1.403" (35.6 MM) OD

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - 1-5/16" NPT male

1шт.

12

REF

INSTRUCTION

VALVE - circuit relief, set at 2500 PSI - see Figure 242

4шт.

13

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

8шт.

15

S62092

WIPER

8шт.

16

S13829

PLATE

- seal

8шт.

17

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW - machine, 3/8" x 1/2" NC

8шт.

18

S62289

END

- plunger

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- .644" (16.4 MM) ID x .818" (20.8 MM) OD

2шт.

20

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

21

S239213

VALVE, PRESSURE RELI

VALVE - circuit relief, set at 3200 PSI - R series (See Figure 242)

1шт.

21a

S106389

VALVE, PRESSURE RELI

VALVE - circuit relief, set at 3200 PSI (See Figure 242)

1шт.

22

REF

INSTRUCTION

CARTRIDGE - main relief, set at 300 PSI (See Figure 240)

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

24

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 25 Hex Hd, 1 5/16"-12 ORB

2шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1.171" (29.7 MM) ID x 1.403" (35.6 MM) OD

1шт.

26

S105060

PLUG

- pipe

2шт.

27

S107817

SEAT

- spring

2шт.

28

S109959

SPRING

4шт.

29

S62290

BOLT

4шт.

30

S62278

CAP

- plunger

4шт.

31

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" x 1" NC, hex socket head (Grade 8)

8шт.

32

S62288

SEAT

- spring

6шт.

33

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

34

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

35

S113313

SPACER

- valve mounting

3шт.

36

131-70

NUT,1/2"-13, GB

NUT - self locking - 1/2" NC

3шт.
