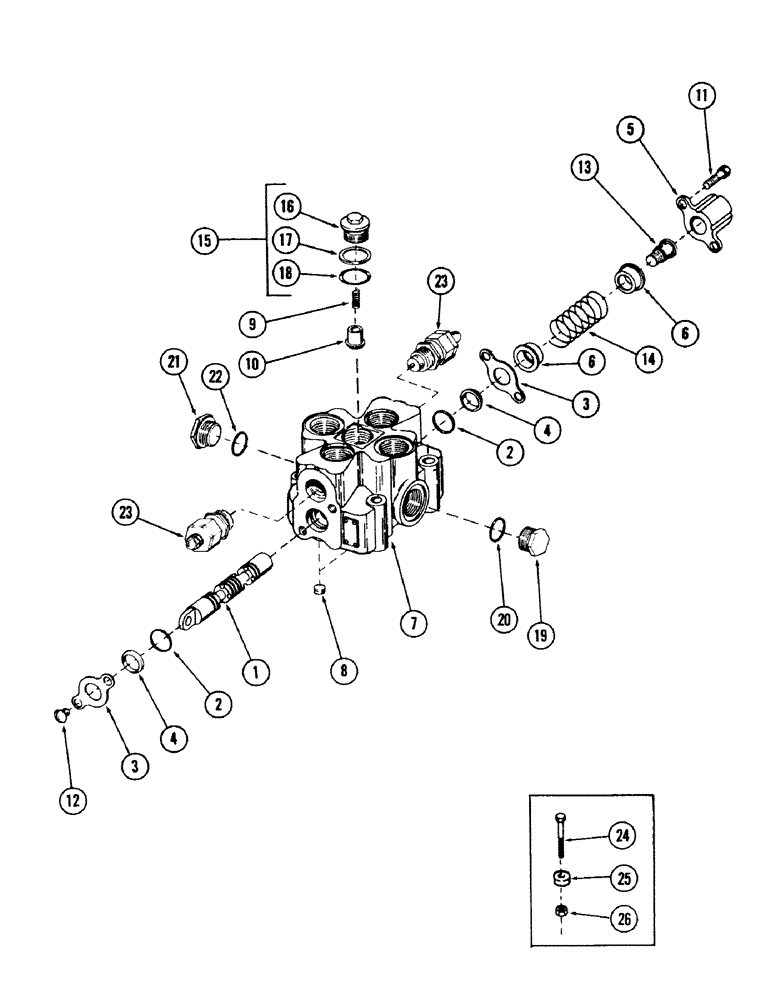

Запчасти Case 40 (232) - 1-SPOOL MAIN CONTROL VALVE, (USED WITH LEVELER CIRCUIT) (35) - HYDRAULIC SYSTEMS

S511546

VALVE, 1 spool main control, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

2шт.

3

S13829

PLATE

seal

2шт.

4

S62092

WIPER

2шт.

5

S62278

CAP

plunger

1шт.

6

S62288

SEAT

spring

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

S105060

PLUG

pipe

2шт.

9

S13715

SPRING

1шт.

10

S13716

VALVE POPPET

POPPET

1шт.

11

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - socket head

2шт.

12

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

2шт.

13

S62290

BOLT

- special

1шт.

14

S108192

SPRING

1шт.

15

S105062

PLUG

ASSEMBLY, Includes: Ref. 16 - 18

1шт.

16

S105094

PLUG

1шт.

17

S105095

RING

back up

1шт.

18

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING

1шт.

19

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- (1-1/4" tube) - 1-5/8" - 12 male, Includes: Ref. 20

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - 1.475" ID x 1.711" OD

1шт.

21

273916

PLUG,Hex, 1-5/16" - 12 ORB

Male, Includes Ref. 22 Hex Hd, 1 5/16"-12 ORB

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

1шт.

23

REF

INSTRUCTION

CARTRIDGE, port relief - set at 2500 PSI - (For breakdown, see Figure 242)

2шт.

24

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

1шт.

25

S113313

SPACER

valve mounting

3шт.

26

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.
