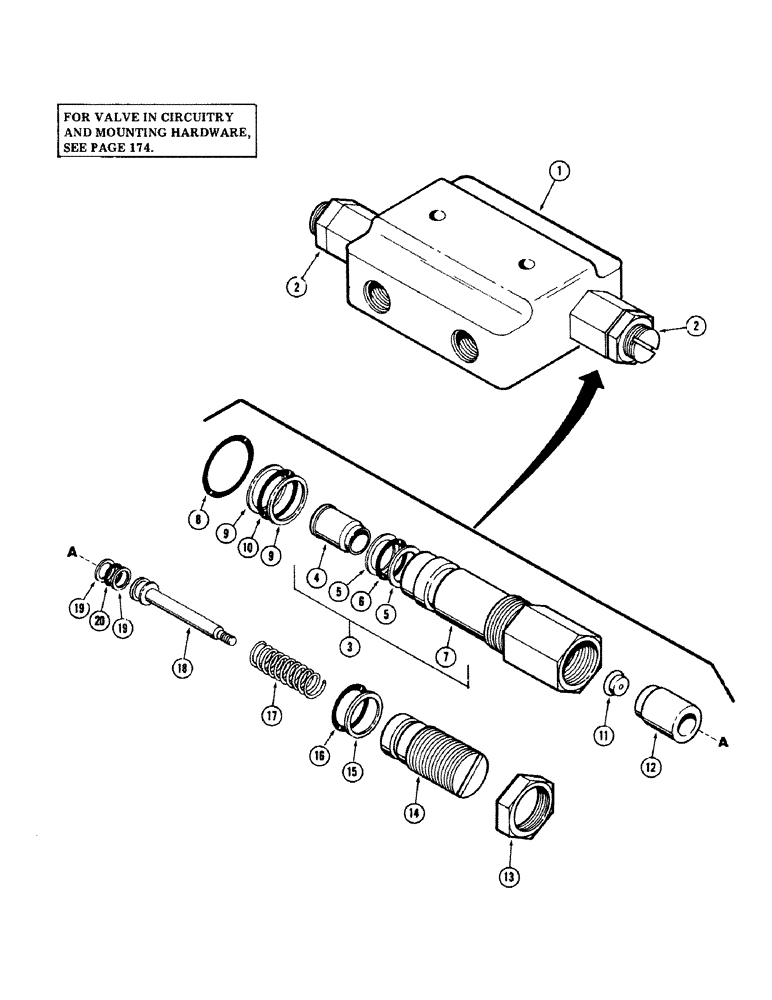

Запчасти Case 40 (230) - SWING CROSSOVER RELIEF VALVE (35) - HYDRAULIC SYSTEMS

S236820

VALVE

- swing inline relief, Includes: Ref. 1 - 20

1шт.

1

S114840

HOUSING

- valve

1шт.

2

S73968

CARTRIDGE

- relief, Includes: Ref. 3 - 20

2шт.

3

S96095

KIT

- service, Includes: Ref. 4 - 7

1шт.

4

S114884

VALVE POPPET

POPPET

1шт.

5

S114885

BACK-UP RING

RING - back-up

2шт.

6

S114886

O-RING

1шт.

7

S91000

CARTRIDGE

SHELL - cartridge

1шт.

8

S118026

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1шт.

9

D24036

WASHER

RING - back-up

2шт.

10

S118024

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

11

R16123

WASHER, THRUST

SNUBBER

1шт.

12

R12510

SEAT

- floating

1шт.

13

R12507

LOCK NUT

- lock

1шт.

14

S96092

ADJUSTMENT SCREW

- adjusting

1шт.

15

S6910

RING

- back-up

1шт.

16

S118025

SNAP RING

O-RING

1шт.

17

S96094

SPRING

1шт.

18

S96093

PLUNGER

- displacement

1шт.

19

S80306

BACK-UP RING

RING - back-up

2шт.

20

S118023

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.
