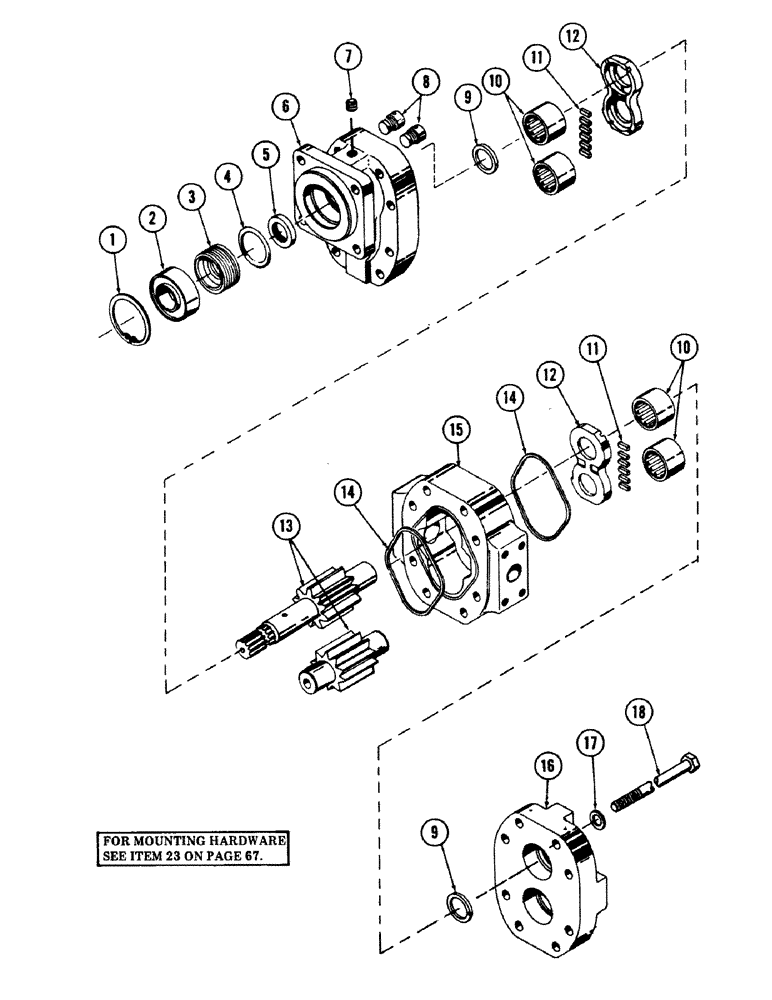

Запчасти Case 40 (216) - TRACK DRIVE MOTOR, (SINGLE SPEED) (35) - HYDRAULIC SYSTEMS

S513343

MOTOR, track drive, Includes: Ref. 1 - 18

2шт.

1

S49477

RING

snap

1шт.

2

S82767

BEARING

ball

1шт.

3

W14025

RETAINER

seal

1шт.

4

A57116

O-RING,2.612 mm ID x 2.818 mm OD x -H288 mm

"O" RING

1шт.

5

S113220

SEAL

1шт.

6

S115571

COVER, shaft end

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

pipe

1шт.

8

S61749

VALVE

CHECK ASSEMBLY

1шт.

9

S82765

SEALING RING

ring

2шт.

10

A16793

NEEDLE BEARING

BEARING, roller

4шт.

11

S82794

SEAL

pocket -, Serial Range: (Cut-length)

1шт.

12

S82770

PLATE

thrust

2шт.

13

W14539

AXLE PIN

GEAR SET

1шт.

14

S82795

GASKET

2шт.

15

S115572

HOUSING, gear

1шт.

16

W14027

COVER

port end

1шт.

17

D31957

WASHER

8шт.

18

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- 5/8" NC x 6" Gr 8

8шт.
