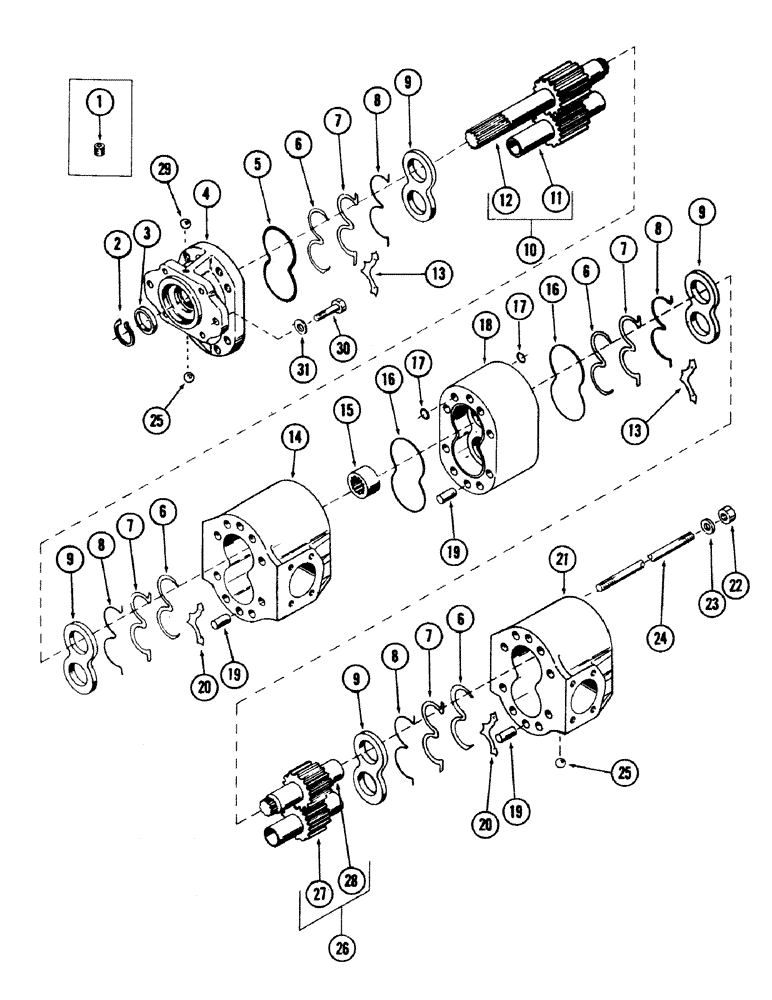

Запчасти Case 40 (212) - MAIN HYDRAULIC PUMP, (USED WITH DETROIT DIESEL ENGINE) (35) - HYDRAULIC SYSTEMS

S513592

PUMP, HYDRAULIC

PUMP, main hydraulic, Includes: Ref. 1 - 29

1шт.

1

L35776

PLUG

- (Into discharge port)

1шт.

Part of front section kit, P/N S236846

1шт.

2

D41419

RING

snap

1шт.

Part of front section kit, P/N S236846

1шт.

3

N6843

SEAL

1шт.

Part of seal kit, P/N S113934

1шт.

Part of front section kit, P/N S236846

1шт.

4

S113263

KIT

FLANGE

1шт.

Part of front section kit, P/N S236846

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

5

S98712

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING

1шт.

Part of seal kit, P/N S113934

1шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236846

1шт.

6

S108490

OIL SEAL

RING, retainer

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

7

S114828

OIL SEAL

RING, back up

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

8

S108891

SEAL

"O" RING

4шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

9

S114855

PLATE

pressure

4шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

10

S113940

KIT, front drive gear, Includes: Ref. 11 and 12

1шт.

Part of front section kit, P/N S236846

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR, idler - (Front)

1шт.

Part of front section kit, P/N S236846

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR, drive - (Front)

1шт.

Part of front section kit, P/N S236846

1шт.

13

S108894

PLATE

isolation - (Top)

2шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

14

S113938

BODY, front section

1шт.

Part of front section kit, P/N S236846

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

15

S108895

COUPLING

splined

1шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

16

S98713

O-RING

"O" RING

2шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

17

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

"O" RING - stud stabilizer

16шт.

Part of pressure balance kit, P/N S109083

1шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

18

S108488

PLATE, bearing

1шт.

Part of rear section kit, P/N S236847

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

19

D41414

PIN

DOWEL

6шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

20

S108893

PLATE

isolation - (Bottom)

2шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

21

S113939

BODY, rear section

1шт.

Part of rear section kit, P/N S236847

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

22

129-167

JAM NUT,Jam, 5/8"-18, G5

- 5/8" - 18 NF

8шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

23

S98714

WASHER

flat - 5/8"

8шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

24

S108898

STUD

8шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

25

211-101

BALL,1/4" Dia, Stainless

2шт.

Part of front section kit, P/N S236846

1шт.

Part of rear section kit, P/N S236847

1шт.

26

S113941

KIT, rear drive gear, Includes: Ref. 27 and 28

1шт.

Part of rear section kit, P/N S236847

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR, idler - (Rear)

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR, drive - (Rear)

1шт.

29

S113599

BALL

1шт.

Part of front section kit, P/N S236846

1шт.

30

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Mounts pump to engine) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

31

196-20

WASHER,41/64" x 1.047" x .134", HDN

flat - 5/8"

2шт.

32

S113934

KIT

seal - Includes: Ref. 3 and 5

1шт.

33

S109083

KIT

pressure balance - Includes: Ref. 5 thru 8, 16 and 17

1шт.

34

S236846

KIT, front section - Includes: Ref. 1 thru 17, 19, 20, 22 thru 25 and 29

1шт.

35

S236847

KIT, rear section - Includes: Ref. 6 thru 9, 13, 15 thru 26

1шт.
